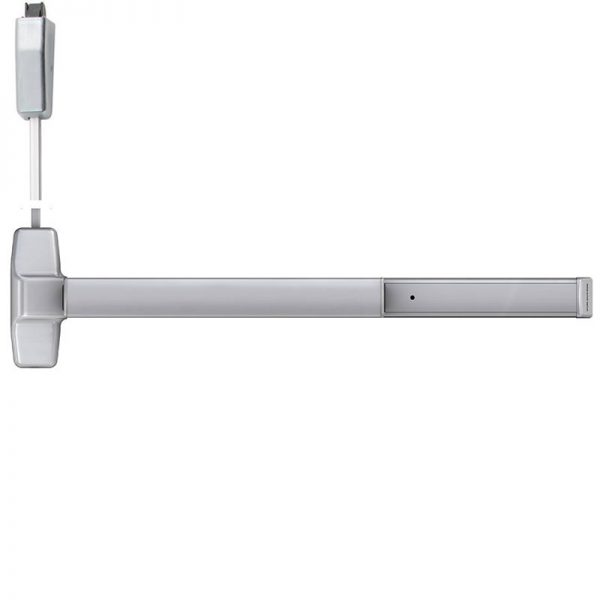

Von Duprin 7827EO-LBR Surface Vertical Rod Exit Device, Less Bottom Rod

Usually Ships: 30-45 Business Days
  • ANSI/BHMA Grade-1 Certified, Made in USA
  • LBR option eliminates the bottom rod, latch, and strike
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Von Duprin 7827EO-LBR Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, Less Bottom Rod, 84″ Door Height, Exit Only, Less Trim, Hex Key Dogging

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.

7827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/ BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

  • EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
  • LBR option eliminates the bottom rod, latch, and strike
  • Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
  • Extension rod available for door up to 10’0″
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware

Brand

Finishes

313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel

Device Type

LBR (Less Bottom Rod) Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3 2014, Grade 1 Certified

Usage

Heavy Duty

Fire Rating

Non-Fire-Rated

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)

Hand

Field Reversible

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Strikes

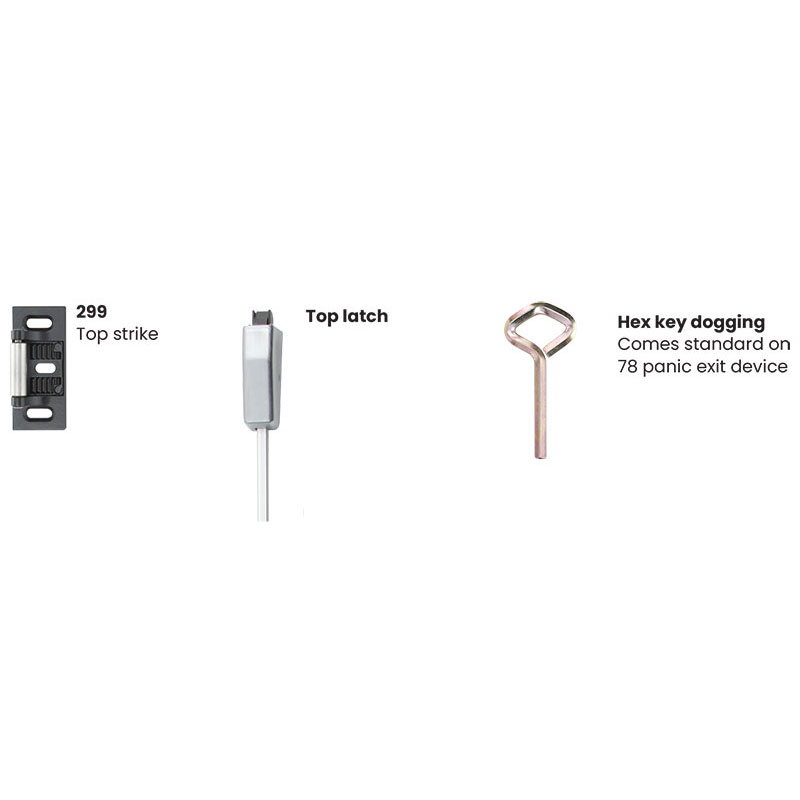

299 top strike

Dogging Feature

Half turn hex dogging standard

Stile Type

Wide (Standard)

Center Case

7-7/8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Warranty

3 Year

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
