Von Duprin 9927EO-F-LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • 3′ x 7′ LBR (Less Bottom Rod) Device w/ Auxiliary Fire Bolt
  • Order 2 Devices for 1 Pair of Doors

Available Options:

Clear

Von Duprin 9927EO-F-LBR Grade 1 Surface Vertical Rod Exit Bar, Fire-Rated, Less Bottom Rod, Wide Stile Pushpad, 84″ Door Height, Exit Only, Less Trim

The 99 Series has been certified to the highest industry standards and is used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty pushpad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources, and more.

  • 9927-F-LBR – UL Listed
  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Standard Size: 3′ x 7′ (extension rod for 8′ doors available in Exit Device Parts and Accessories)
  • Designed for high use and abuse in institutional applications

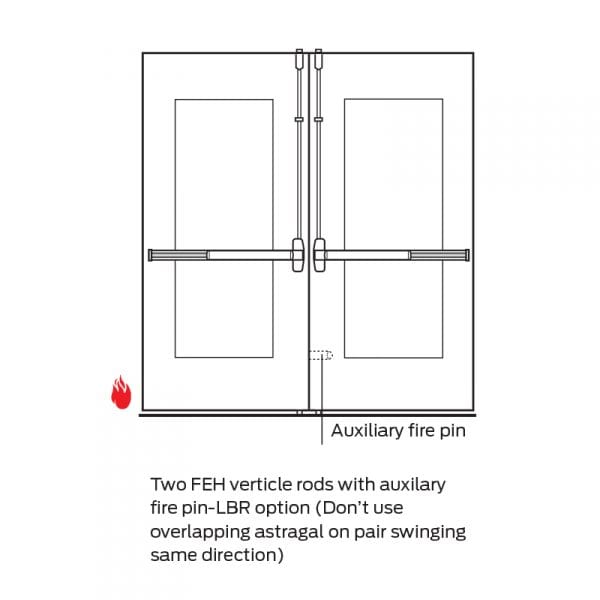

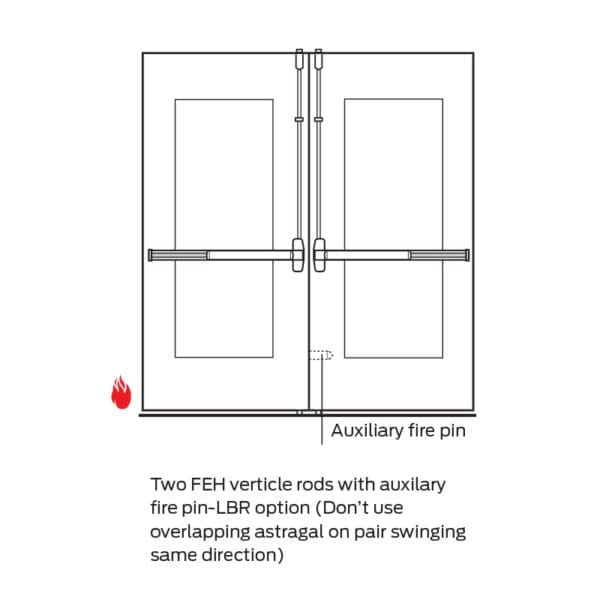

LBR (Less Bottom Rod) devices use a spring-loaded auxiliary latch bolt installed in the lower door edge. When exposed to heat the auxiliary latch bolt releases, keeping the doors in alignment and closed during a fire. UL listed 3 hours on hollow metal doors double egress, 90-minute swinging same direction, and 20-minute wood doors (consult wood door manufacturer). Fits door stiles as narrow as 3-5/8.

Single devices must be used in conjunction with an approved automatic or constant latching flush bolt.

Brand

Finishes

313 Duranodic Dark Bronze, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (extension rod available for 8'0" doors)

Device Type

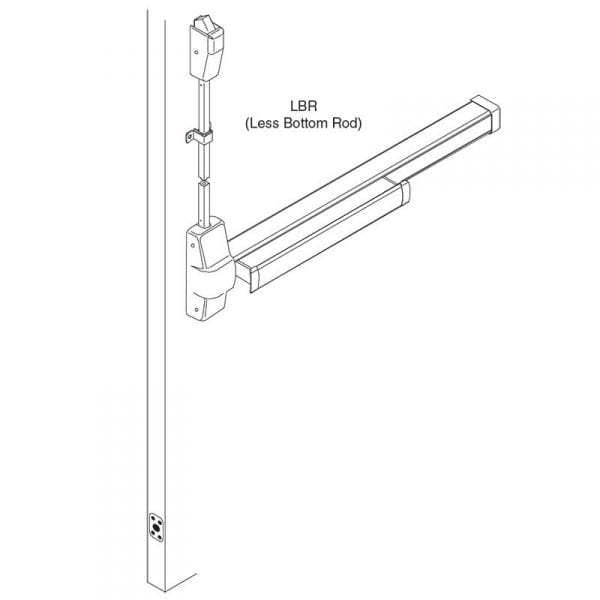

LBR (Less Bottom Rod) Surface Rod Device

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

UL listed 3 hours on hollow metal doors double egress, 90 minute swinging same direction, and 20 minutes wood doors (consult wood door manufacturer)

Hand

Field Reversible

Latchbolt

Deadlocking anti-friction top bolt, 5/8" throw

Strike

499F Top Strike

Fasteners

Includes screws for metal and wood doors

Dogging Feature

None

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Stile Type

Wide (Standard)

Door Applications

1-3/4″ Thick Fire-Rated Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
