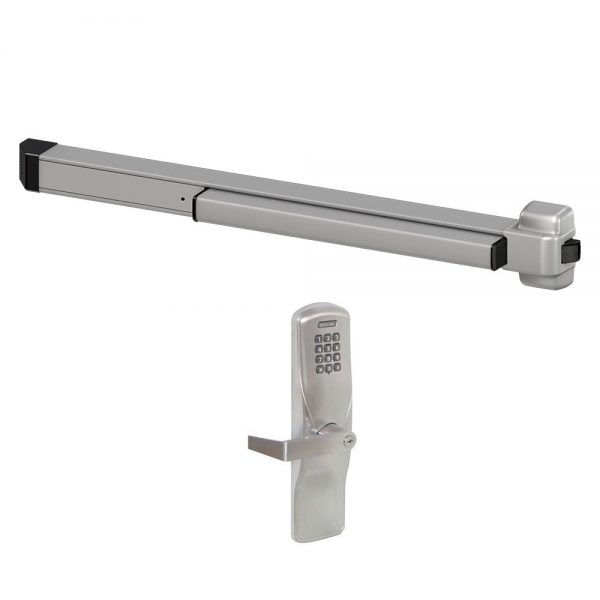

Von Duprin 22 Rim Exit Device with CO-100-993R-70 Electronic Keypad Lever

Usually Ships: 2-3 Days
  • Grade-1 – ANSI/BHMA Certified
  • Includes Schlage CO-100-993R-70 Electronic Keypad Lever
  • Up to 500 Unique PIN Codes – Mechanical Key Override

Available Options:

Clear

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

  • SP28 Sprayed Aluminum Finish
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

Schlage CO-100-993R-70-KP-RHO Keypad Electronic Rim Exit Device Trim – US26D Satin Chrome

The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 22 Series exit devices.

  • 4 AA batteries included – up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
  • Key Override (Schlage C Keyway)
Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

Schlage CO-100-993R-70-KP-RHO – US26D

Keyway

Schlage C Keyway

Hand

Device Non-Handed – Lever Field Reversible

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Medium Duty

Fire Rating

22CO-100: Non-Fire-Rated – 22CO-100-F: UL Listed A or B label Fire-Rated (3 Hours)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Latchbolt

Deadlatching, 3/4" throw

Stile Type

Wide (Standard)

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
