Trudoor TDE-2000R-NL-OP Rim Exit Device with Night Latch Cylinder Kit

Usually Ships: Same Day
  • TDE-2000R with night latch cylinder (optional pull sold separately)
  • Includes Trudoor TD-RC rim cylinder with collar, screws, and back plate
  • ANSI Function 03 (key retracts latchbolt)

Available Options:
Clear

Product Overview

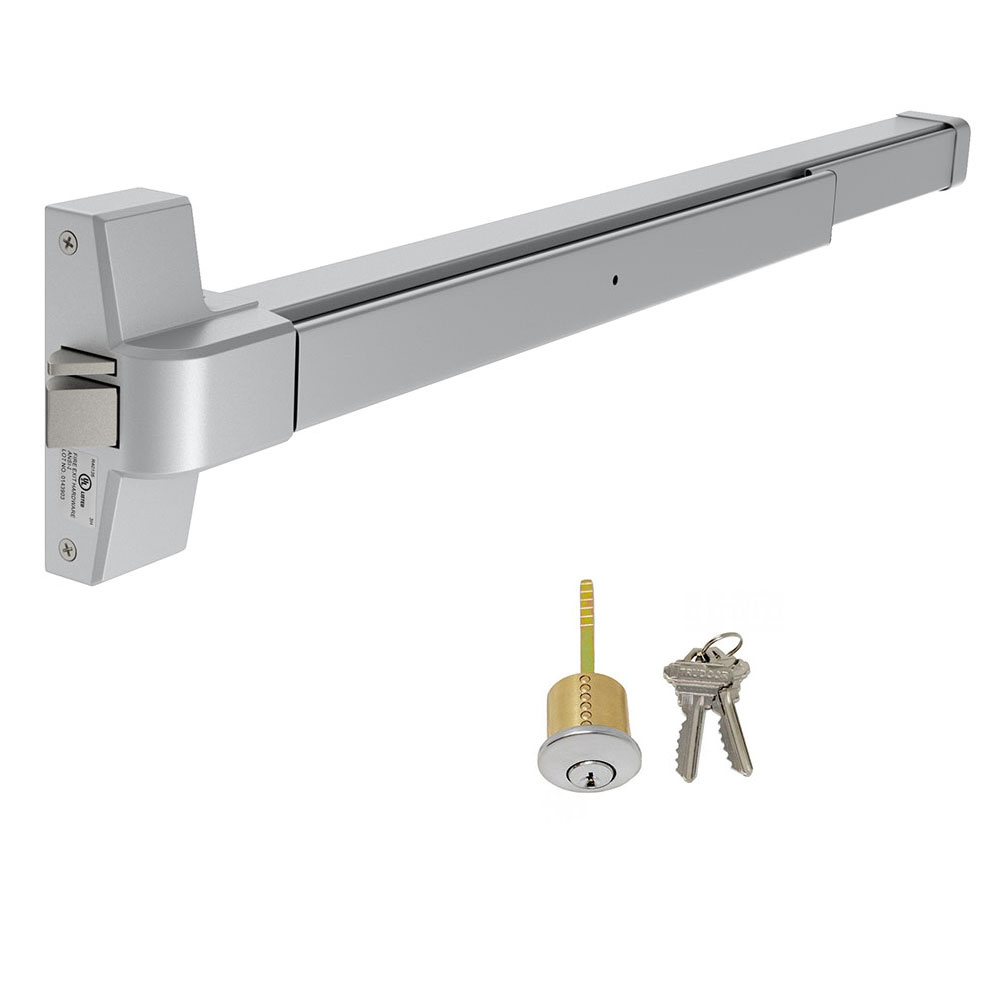

Trudoor TDE-2000R-NL-OP Grade-1 Rim Exit Device with TD-RC Rim Cylinder

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function: 03 (Entrance by pull when latch bolt is retracted by key – Key is removable only when it’s locked)

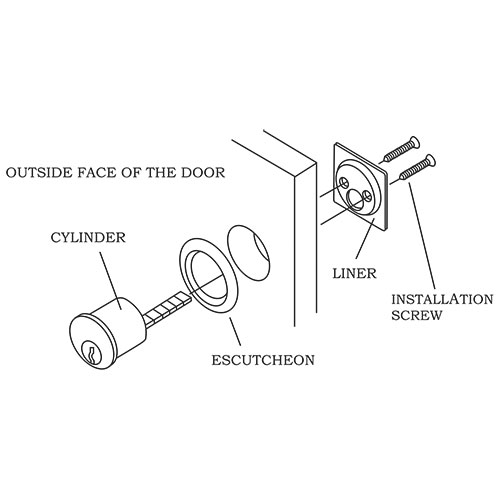

  • Includes Trudoor TD-RC rim cylinder with horizontal tailpiece, collar, mounting screws, and back plate (installs outside – requires hole in the door)
  • Optional Pull Required
  • TDE-2000R-NL-OP: UL Listed for Panic Exit Hardware
  • TDE-F2000R-NL-OP: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ul-listed







Brand

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Finishes

BLK – Matte Black, SP28 (689) Aluminum
ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
UL Listings

TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors
Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Cylinder

US32D Stainless Steel Rim Cylinder (included)
Keyway

Schlage C Keyway
Pull

Optional (not included – sold separately)
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Non Handed – Completely Reversible
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case

1-5/8″ Height x 1-13/16″ Wide
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
