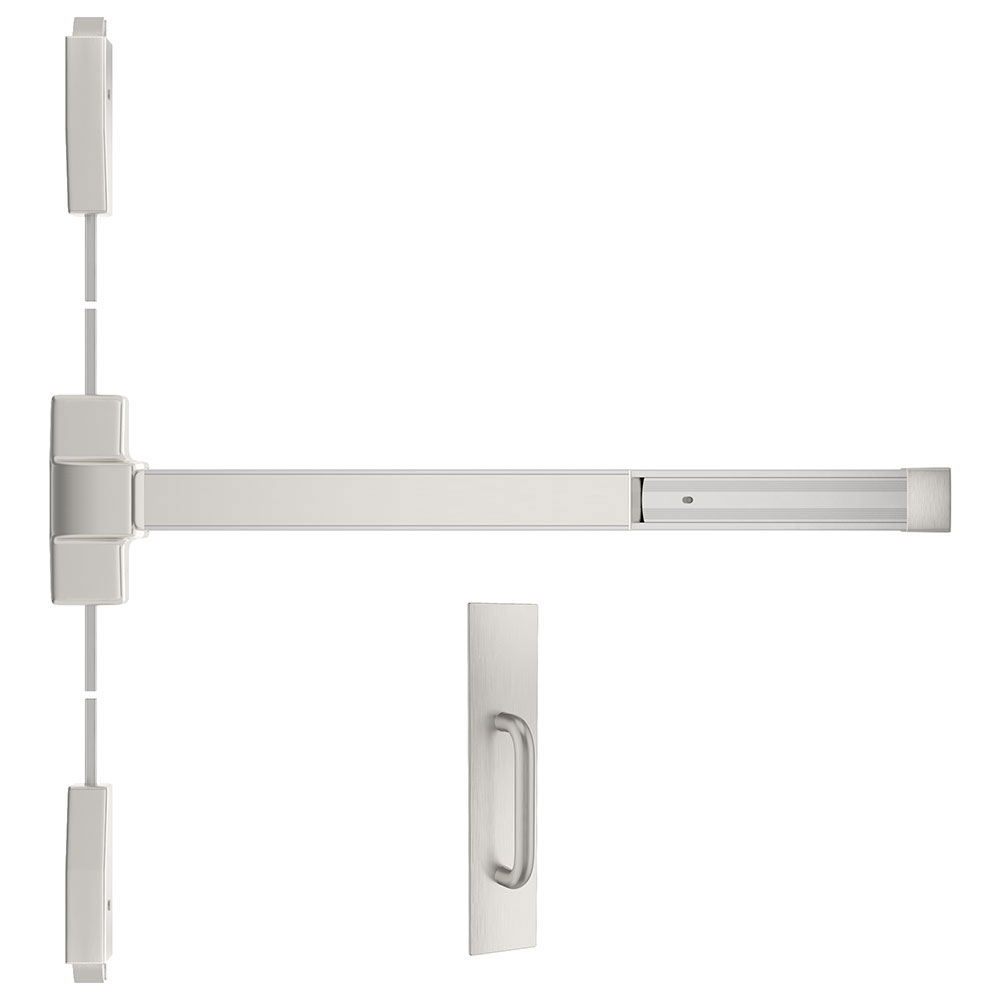

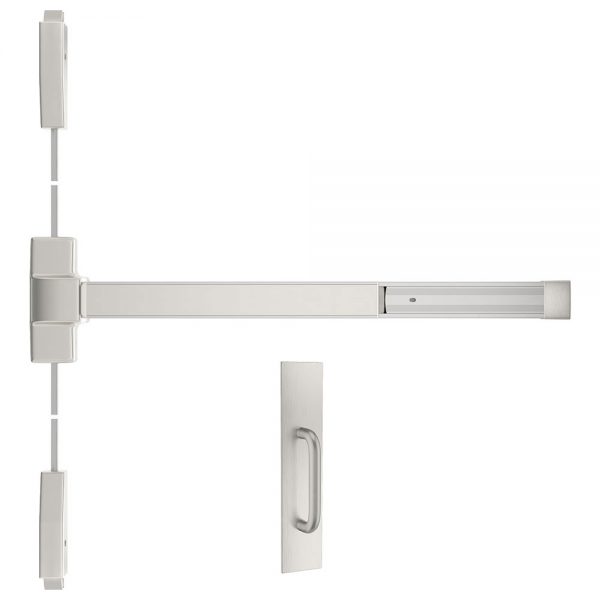

Trudoor TDE-1000V-DT Heavy-Duty Surface Vertical Rod Exit Device with Dummy Pull

Trudoor TDE-1000V-DT Heavy-Duty Grade-1 Surface Vertical Rod Exit Device with Dummy Pull Trim, Panic Rated, Satin Stainless Steel

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

• ANSI Function 02 (Dummy) – acts as a pull when device is dogged
• UL Listed for Panic Exit Hardware
• Designed for heavy use
• Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
• Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
• Heavy-duty extruded anodized aluminum mechanism case and cover plate
• Steel chassis, center case cover, push pad, and end cap
• Hex key dogging standard on panic exit device

TDE-DT Dummy Pull Trim

• ANSI Function: 02 (Pull when dogged)
• An ideal choice for high-use doors that will be dogged down for push/pull applications
• 3/4″ diameter x 6-1/4″ CTC x 2-7/16″ projection
• 3″ wide x 13-7/8″ height x 1/16″ thick escutcheon plate size
• US32D/630 Stainless Steel Finish
• Thru bolts to head of exit device
• Stainless steel construction

Sizes

• 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
• 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
