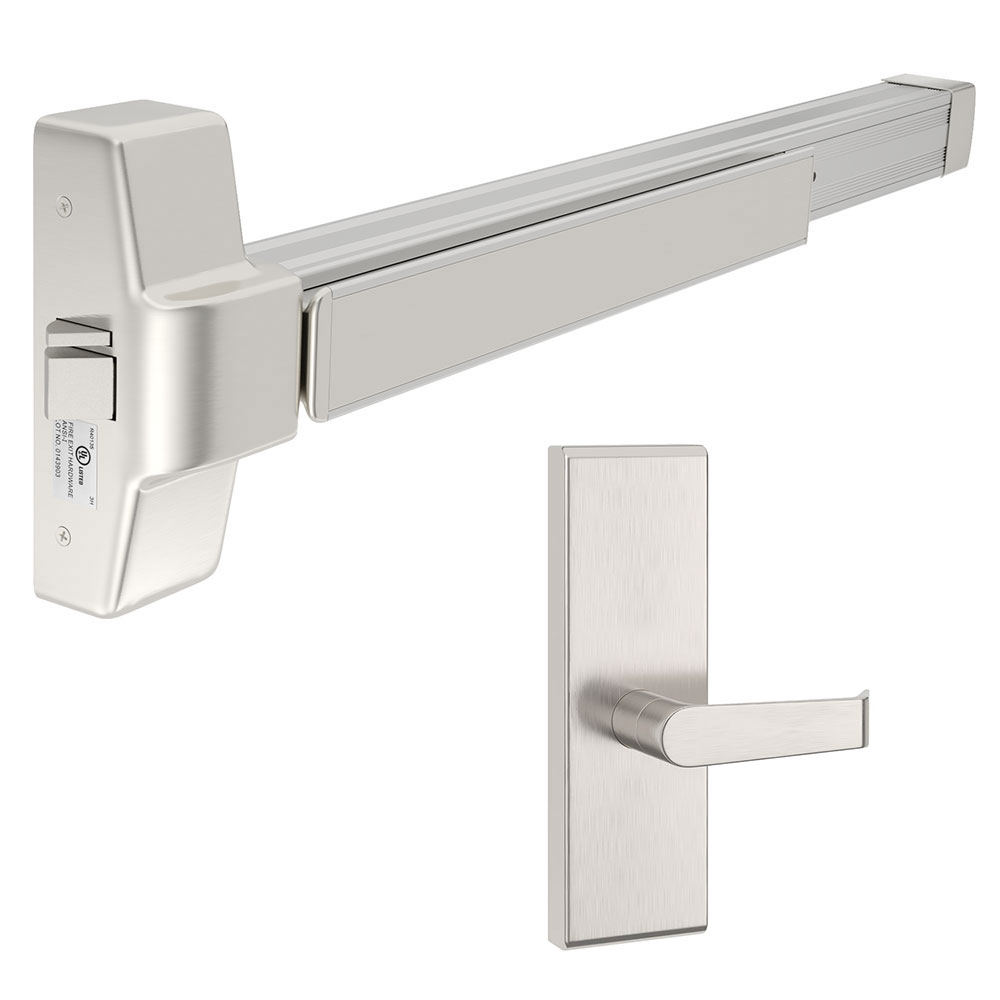

Trudoor TDE-1000R-L-DT Rim Exit Device with Blank Escutcheon Dummy Lever

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-02 blank escutcheon dummy lever trim
  • ANSI Function 02, rigid, acts as a pull when device is dogged

Available Options:

Product Overview

Trudoor TDE-1000R-L-DT Heavy-Duty Grade-1 Rim Exit Device with Blank Escutcheon Dummy Lever Trim

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 02 (Dummy) – pull when dogged
  • UL Listing: UL Listed for panic exit hardware
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

TDE-02 Blank Escutcheon Dummy Lever Trim, Keyless

  • Pull when dogged
  • Blank escutcheon, no cylinder hole
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
Brand

Finishes

US32D (630) Satin Stainless Steel
Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Trim

TDE-02 Dummy Lever
ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage

Heavy Duty
Fire Rating

None
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Handing

Non-Handed, Field selected at the time of installation
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Stile Type

Wide (Standard)
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Mechanism Case

2-3/16″ Height x 2-3/16″ Wide
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Warranty

Limited Lifetime Warranty
