Trudoor TD-PG Perimeter Jamb Gasketing Weatherstrip with Vinyl Insert

Usually Ships: Same Day
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, insects, and weather
  • Provides energy-efficient performance

Available Options:

Clear

Trudoor TD-PG Standard Perimeter Jamb Gasketing Weatherstrip with Vinyl Insert

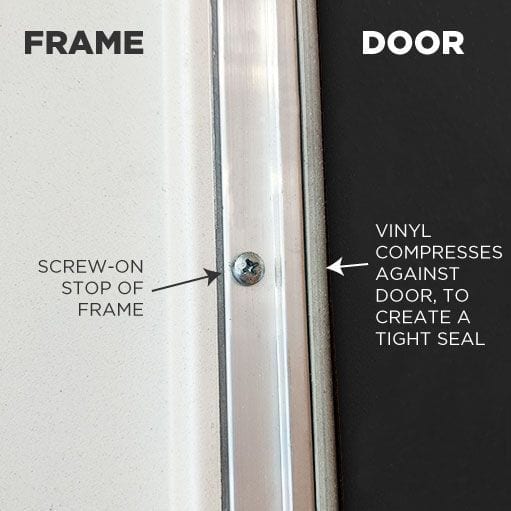

Designed to be applied to the “stop” perimeter of the door frame. The vinyl seal compresses against the door, to create a tight weatherproof seal.

Our door weather seal products are engineered and tested for durability and reliable performance to ensure that they meet or exceed industry standards.

  • Available Sizes: 36″ x 84″ Set, 72″ x 84″ Set and ^84″ and ^*96″ Single Pieces
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies for 96″ pieces
^can be used for frame head, jamb, or as an astragal for pairs of doors
Sets include (1) jamb header piece and (2) hinge & strike jamb pieces.

  • Can be used as a perimeter gasket or a meeting stile

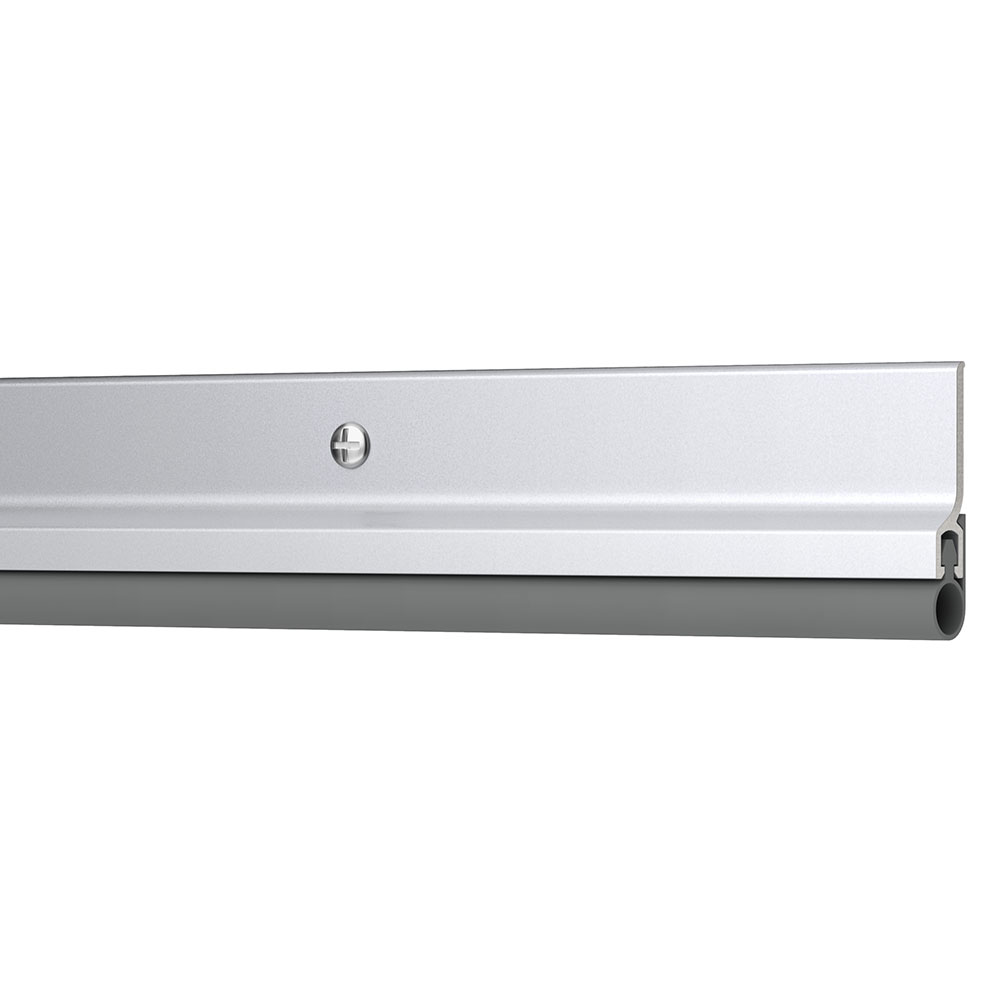

  • Consists of an aluminum channel with a vinyl rubber seal
  • Designed to seal the gaps around the top & two sides of a door opening
  • Can be installed on either wood or metal frames
  • Each weatherstrip can seal gaps up to the depth of its seal
  • Channels are punched with slotted holes for easy adjustment
  • #6 x 5/8″ self-tapping pan head sheet metal screws furnished

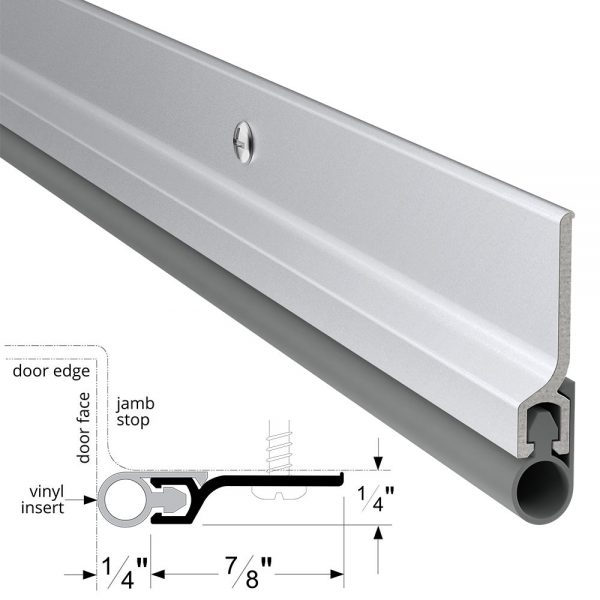

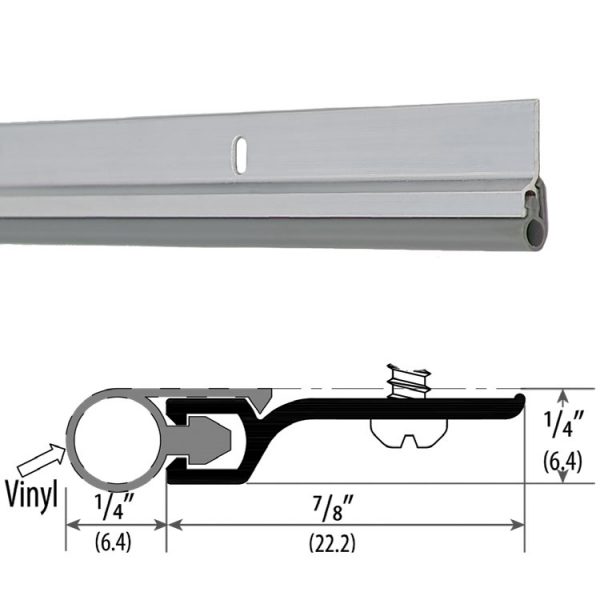

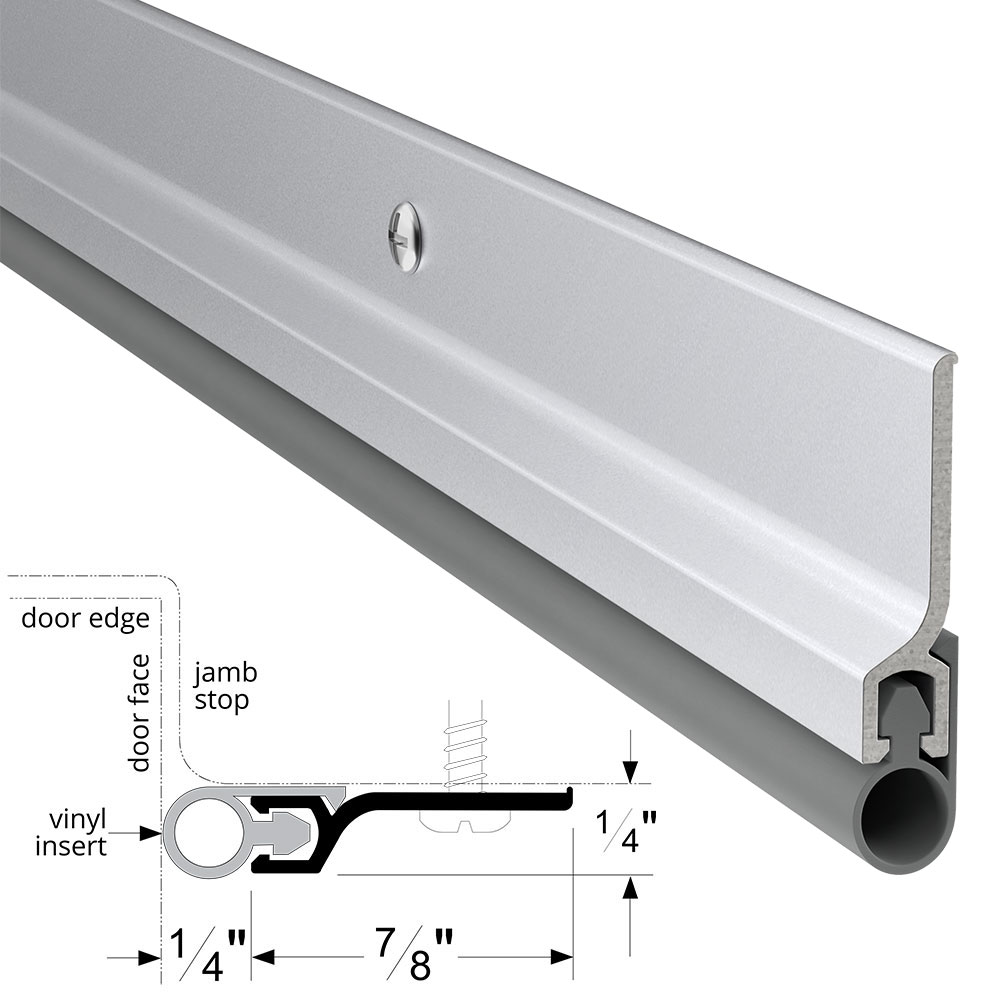

  • Width: 1/4″ (6.4mm)
  • Profile Height: 7/8″ (22.2mm)
  • Total Height: 1-1/8″ (28.6mm)
  • UL listed, fire-rated
  • Sound tested
  • Smoke tested
  • Air infilration tested

TD-SWN-Codes

Cross-reference: Cal-Royal PG-603, Design Hardware PS-V, Hager 891S, NGP 160V, Pemko 303_V, Reese 807

Brand

Size

36" x 84", 72" x 84", 84", 96"

Finishes

Mill Finish Aluminum

Gasket Type

Screw-on

Insert/Seal Type

Vinyl

Fire Rating

UL/cUL listed up to 3 Hours

Fasteners

PHSMS #6 x 5/8"

Applications

Alumimum, Steel, or Wood Frames and Doors
