Product Overview

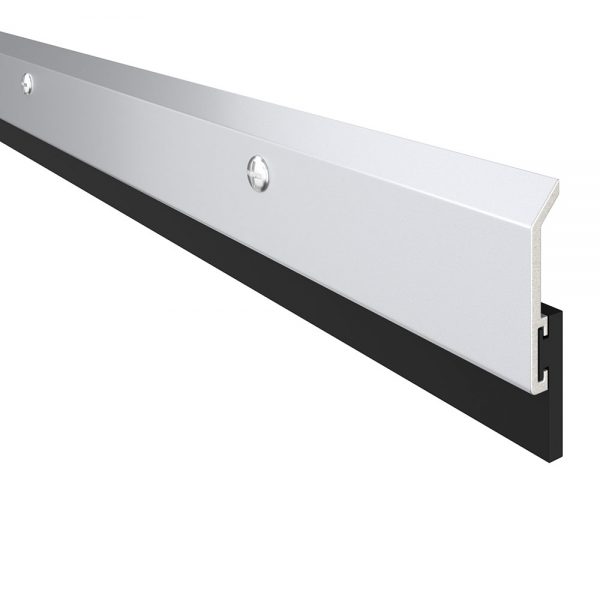

Trudoor TD-SWN Door Bottom Sweep with Extruded Aluminum Retainer and Neoprene Insert
The TD-SWN Door Sweep is designed with an aluminum casing and a neoprene extrusion. This door sweep includes fasteners and is easy to install.
- Used to seal the gap at the bottom of the door to prevent infiltration of air, sound, light, drafts, insects, moisture, wind, water, snow, smoke, and fire
- Surface mounts to the face of the door
- Commonly used on the exterior outswing doors
- Made of extruded aluminum retainer with neoprene insert
- Use on either wood or hollow metal doors
- Slotted holes for easy adjustment
- Includes #6 x 5/8 PPHSMS fasteners

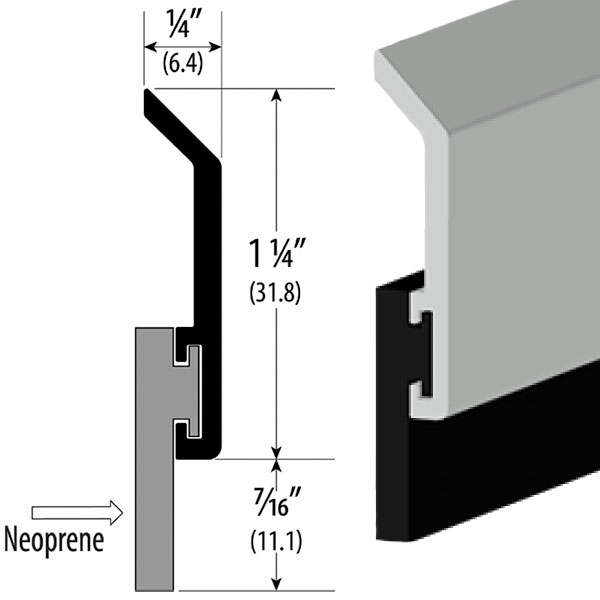

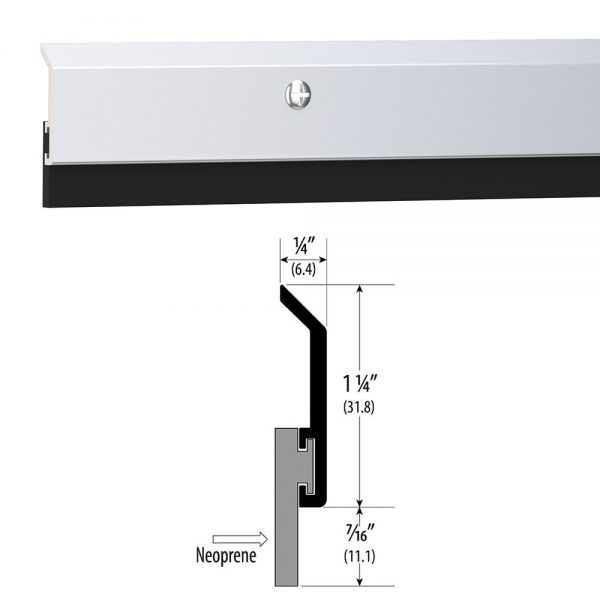

- Width: 1/4” (6.4 mm)
- Profile Height: 1-1/4” (31.8 mm)
- Total Height with Insert: 1-11/16” (42.9 mm
- Length: 36″ or 48″
Cross-reference: Cal-Royal BTN-133, Design Hardware SW-R, Draftseal DS138, Hager 750S, NGP 200N, Pemko 315_N, Reese 323, Zero 39
| Brand | |
|---|---|
| Finishes | Mill Finish Aluminum |
| Length | 36", 48" |
| Insert/Seal Type | Neoprene or EPDM |
| Fasteners | PHSMS #6 x 5/8" |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
