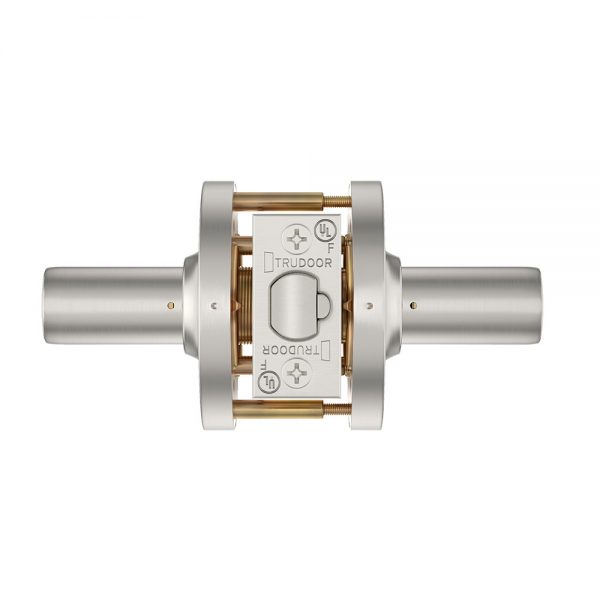

trudoor-cl2-series-lever-lock-side-view
classroom function
TRUDOOR-CL2-SFIC
trudoor-cl2-series-lever-lock-side-view
classroom function

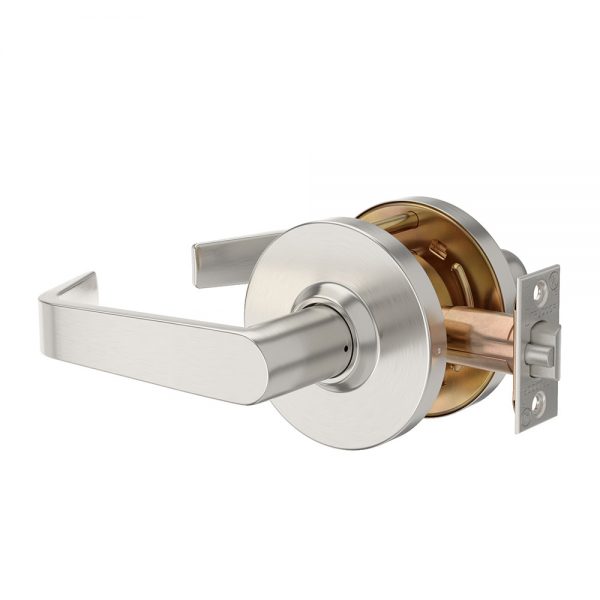

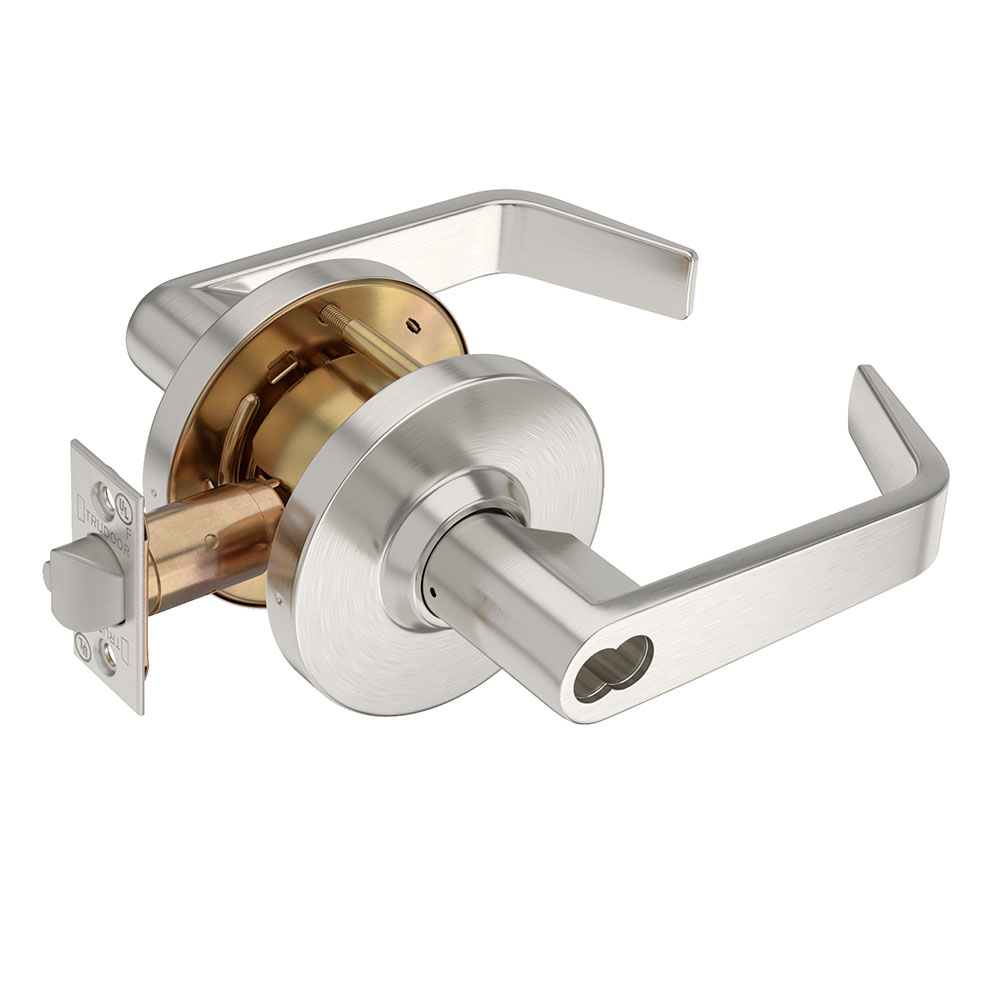

Trudoor CL2-84-SFIC Classroom Lever Lock, Small Format Interchangeable Core Prep

Usually Ships: Same Day
  • Meets & exceeds ANSI Grade 2 standards
  • Small format interchangeable core prep (core sold separately)
  • Lock/unlock by key, inside always unlocked

Available Options:
Clear

Product Overview

Trudoor CL2-84-SFIC, CL2 Series Grade-2 Cylindrical Lever Lock, Classroom Function, Small Format Interchangeable Core Prep, Less Core

Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial or industrial buildings.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

Classroom Function, ANSI F84 – Outside lever is locked and unlocked by key. Inside lever is always unlocked and always free for immediate egress.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Quality construction and reliability at an affordable price
  • Anti-sag mechanism with independent lever return springs to prevent sag
  • Non-handed and reversible for easy installation
  • Optional thru-bolts for added strength
  • 626 Satin Chrome finish
  • 2-3/4″ backset latch and ASA strike standard (2-3/8″ backset, t-strike, and full lip strike available in lock parts and accessories)

Code Compliance

  • Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
  • UL Listed for “A” Label 3 Hour Fire-Rated Doors
  • Meets ADA and ANSI A117.1 Accessibility Codes
  • Meets California code for 1/2″ lever return to door face

Cross Reference

The CL2-84-SFIC can be specified as a substitute and/or replacement for: MLX87-SB / RL17, Cal-Royal ICSL03 / ICXP03, Corbin Russwin CL3855 M08, Design Hardware J-84-IC-F, Dorma C270J / CL770J, Falcon B561BD / W561BD, Hager 3570-SFIC-NC, Marks 175RS, PDQ SD148 SFL / GP148 SLF, Sargent 2870-65G37 / 2870-7G37, Schlage AL70BD / ALX70B,  Stanley QCL261, Yale 5308LN / 4608LN

Brand

Finishes

US26D (626) Satin Chrome
Lock Function

Classroom
ANSI Grade

Meets & exceeds ANSI – A156.2, Series 4000, Grade 2 standards
Usage

Medium Duty
Cylinder

Prepped for (SFIC) Small Format Interchangeable Core (less core)
Latch

2-3/4" Backset: 1/2" throw, deadlatch – 1-1/8" x 2-1/4" face or 2-3/8" Backset: 1/2" throw, deadlatch – 1" x 2-1/4" face
Backset

2-3/4" Standard, 2-3/8" Optional
Strike

Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike
Handing

Non Handed – Completely Reversible
Chassis

Steel, zinc dichromated for corrosion resistance
Trim

5” solid zinc die-cast levers, 3-3/8” wrought brass roses
Fasteners

Combination screws for wood or metal doors & frames
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Door Thickness

1-3/8" to 1-3/4"
Door Applications

Interior or Exterior Hollow Metal Doors and Wood Doors
Warranty

Limited Lifetime Warranty
