Trudoor CL2-84-US26D Classroom Lever Lock

$58.00

Usually Ships: Same Day
  • Medium-Duty – Grade 2
  • Lock/Unlock by Key – Inside Always Unlocked
  • ADA Compliant – 3 Hour Fire-Rated

Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality and other commercial or industrial buildings.

  • Quality construction and reliability at an affordable price
  • Anti-sag mechanism with independent lever return springs to prevent sag
  • Non-handed and reversible for easy installation
  • Optional thru-bolts for added strength
  • US26D/626 Satin Chrome Finish
  • 2-3/4″ backset latch and ASA strike standard (2-3/8″ backset, t-strike, and full lip strike available in lock parts and accessories)

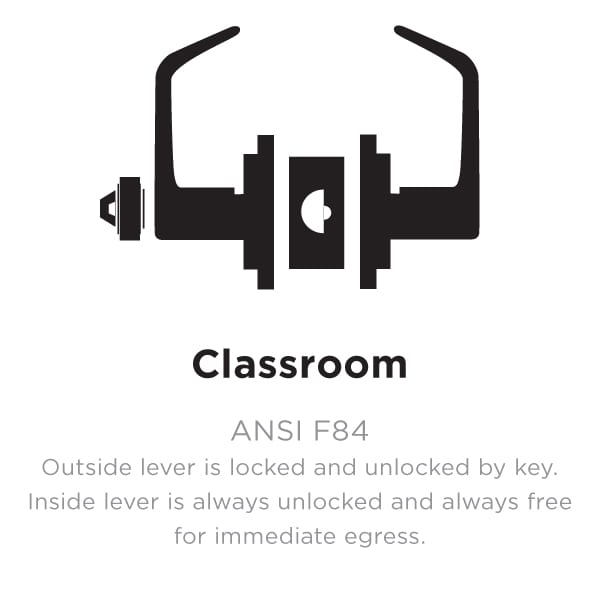

Classroom Function, ANSI F84 – Outside lever is locked and unlocked by key. Inside lever is always unlocked and always free for immediate egress.

Code Compliance

  • Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
  • UL Listed for “A” Label 3 Hour Fire-Rated Doors
  • Meets ADA and ANSI A117.1 Accessibility Codes
  • Meets California code for 1/2″ lever return to door face

Cross Reference

The CL2-84 can be specified as a substitute and/or replacement for: Arrow MLX87-SB / RL17, Cal-Royal SL03 / XP03, Corbin Russwin CL3855, Design Hardware J-84-F, Dorma CL770, Falcon B561 / W561, Hager 3570, PDQ SD148 / GP148, Sargent 65G37 / 7G37, Schlage AL70PD / ALX70P,  Stanley QCL260, Yale 5308LN / 4608LN

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Classroom

ANSI Grade

Meets & exceeds ANSI – A156.2, Series 4000, Grade 2 standards

Usage

Medium Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4" standard

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Chassis

Steel, zinc dichromated for corrosion resistance

Trim

5” solid zinc die-cast levers, 3-3/8” wrought brass roses

Fasteners

Combination screws for wood or metal doors & frames

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors

Door Thickness

1-3/8" to 1-3/4"

Door Applications

Interior or Exterior Hollow Metal Doors and Wood Doors

Warranty

Limited Lifetime Warranty
