Product Overview

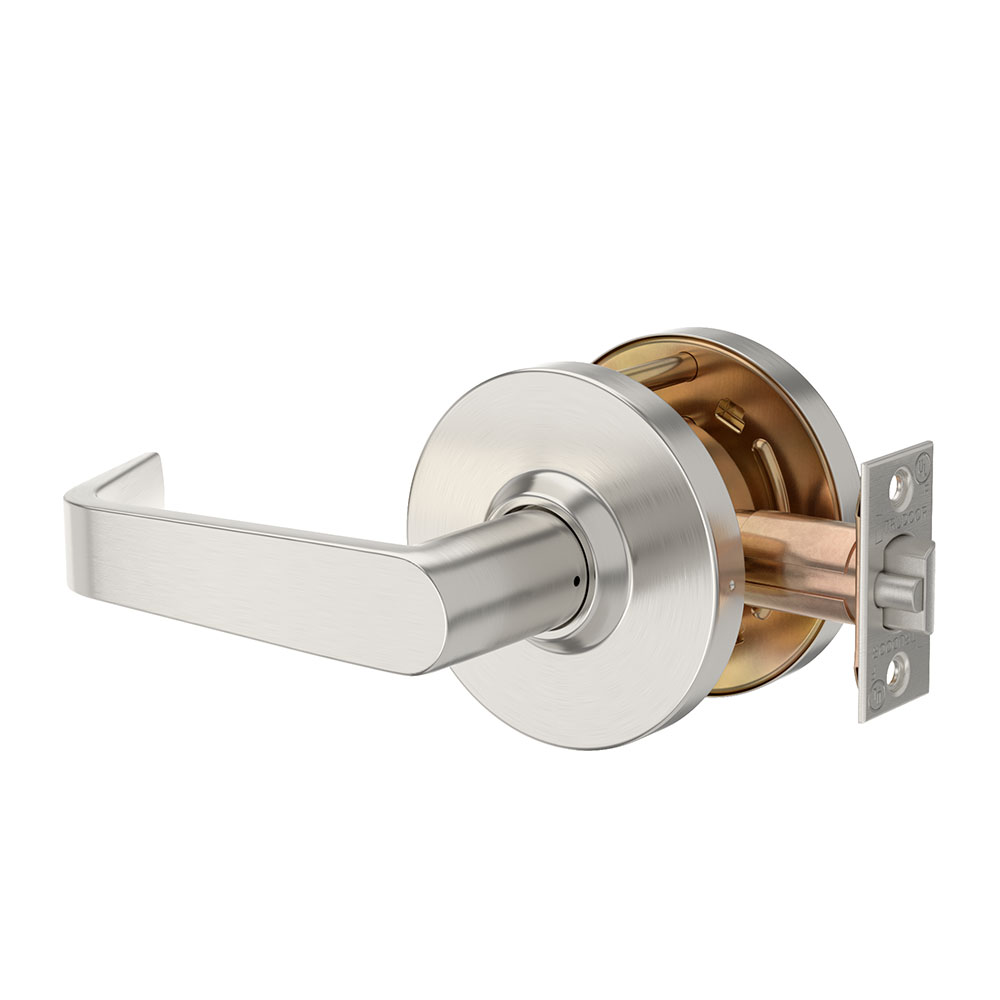

Trudoor CL2-111, CL2 Series Grade-2 Communicating Passage/Exit Latch Lever Set
Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial or industrial buildings.
ANSI Function F111 – Keyless – Deadlocking latch bolt operated by inside lever. Non-removable blank plate outside. Inside lever always free for immediate egress.
- Quality construction and reliability at an affordable price
- Anti-sag mechanism with independent lever return springs to prevent sag
- Non-handed and reversible for easy installation
- Optional thru-bolts for added strength
- 2-3/4″ backset latch and ASA strike standard (2-3/8″ backset, t-strike, and full lip strike available in lock parts and accessories)
Code Compliance
- Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
- UL Listed for “A” Label 3 Hour Fire-Rated Doors
- Meets ADA and ANSI A117.1 Accessibility Codes
- Meets California code for 1/2″ lever return to door face
Cross Reference
The CL2-111 can be specified as a substitute and/or replacement for: Accentra/Yale 5328LN / 4628LN, Arrow RL03, Cal-Royal SL50 / XP50, Corbin Russwin CL3880, Design Hardware J-61-F, Dorma C225, Falcon B161 / W161, Hager 3525, Marks 175NB, PDQ SD125 / GP125, Sargent 65G15 / 7G15
Brand | |
---|---|
Finishes | US26D (626) Satin Chrome |
Lock Function | Exit / Communicating |
ANSI Grade | Meets & exceeds ANSI – A156.2, Series 4000, Grade 2 standards |
Usage | Medium Duty |
Latch | 2-3/4" Backset: 1/2" throw, deadlatch – 1-1/8" x 2-1/4" face or 2-3/8" Backset: 1/2" throw, deadlatch – 1" x 2-1/4" face |
Backset | 2-3/4" Standard, 2-3/8" Optional |
Strike | Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike |
Handing | Non Handed – Completely Reversible |
Chassis | Steel, zinc dichromated for corrosion resistance |
Trim | 5” solid zinc die-cast lever, 3-3/8” wrought brass rose |
Fasteners | Combination screws for wood or metal doors & frames |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | UL Listed for “A” Label 3 Hour Fire Doors |
Door Thickness | 1-3/8" to 1-3/4" |
Warranty | Limited Lifetime Warranty |
