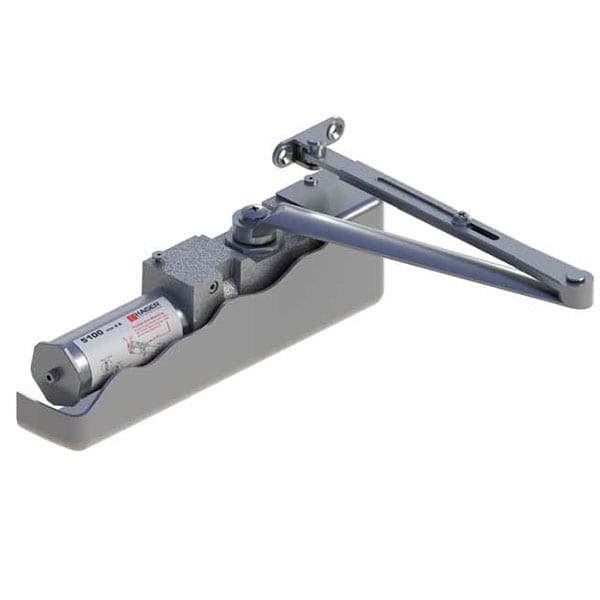

Hager 5100 Door Closer


Usually Ships: 2-3 Days
  • Heavy Duty – ANSI Grade-1
  • Adjustable Spring Size 1-6
  • Tri-Packed for Regular, Top Jamb and Parallel Arm Installations

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy-duty, high use, and abusive environments.

  • Tri-Pack – Regular, parallel arm, and top jamb mount – Standard
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments

Templating (Hole Pattern)

2-1/4" x 5"



ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire Rating

UL Listed – UL10c compliant for positive pressure

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6




Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Door Applications

Hollow Metal, Wood or Aluminum

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


Heavy Duty

Hager 5100 Installation
