Product Overview

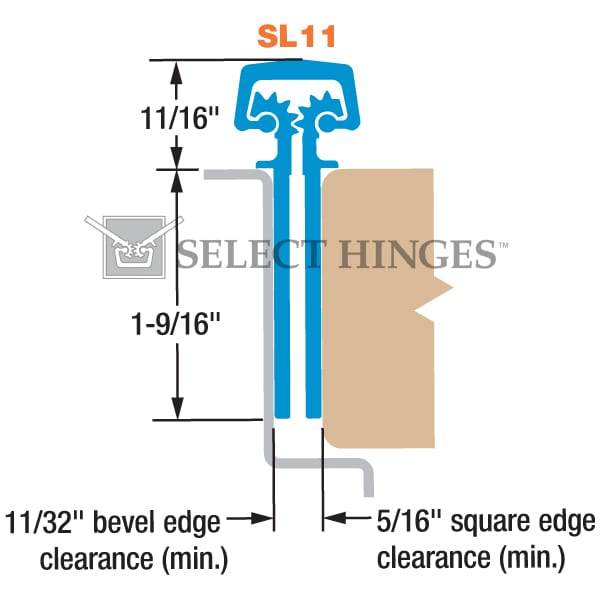

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.
Flush mounted (no door inset). For 1-3/4″ doors.
SL11 SD geared continuous hinges are BHMA Grade 1 certified.
- Lifetime lubrication
- Anodized after machining
- Consistent templating
| Brand | |
|---|---|
| Finishes | Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum |
| Length | 83" (for 7'0" door), 95" (for 8'0" door) |
| Material | Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings. |
| Load / Frequency | For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Standard Duty — Tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement. |
| Usage | Standard Duty |
| ANSI/BHMA Standard | ANSI/BHMA A156.26-2006 Grade 1 |
| Fire Rating | All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost |
| Continuous Hinge Type | Full Mortise (Concealed) |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
