NGP (National Guard) HD2400 Heavy Duty Concealed Continuous Geared Hinge

Usually Ships: 3-5 Business Days

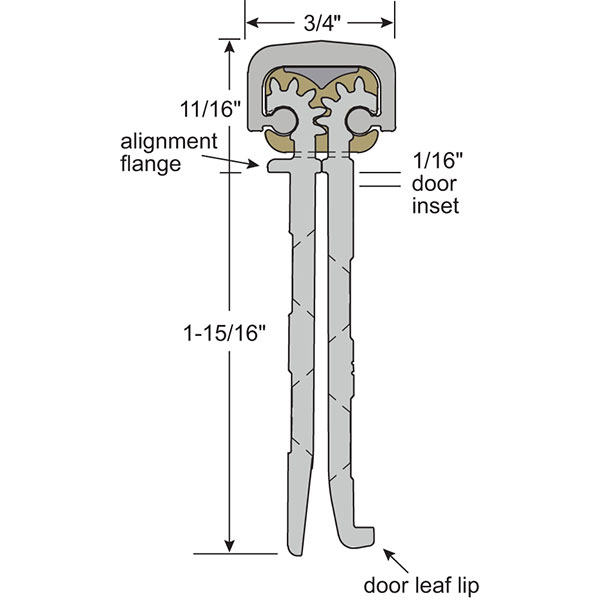

  • 1/16″ door inset, for 1-3/4″ doors
  • UL listed, fire-rated up to 90-minutes
  • Supports weights up to 600lbs (LL model 1000 lbs)

Available Options:
Clear

Product Overview

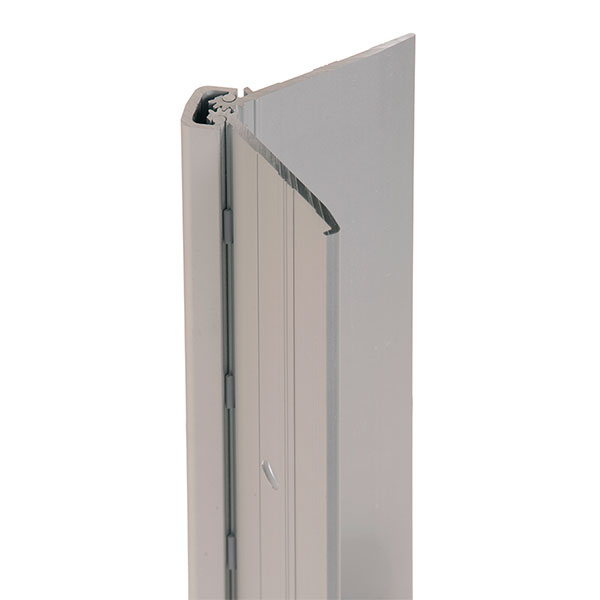

NGP HD2400/HD2400-LL Heavy Duty Concealed Continuous Geared Hinge

Continuous geared aluminum hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.

  • 1/16″ door inset for 1-3/4″ thick doors
  • Aluminum alloy 6063-T6; Anodized after machining
  • Specially designed involute intermeshing gears
  • Proprietary Teflon infused self-lubricating wear-resistant bearings
  • No hinge reinforcement is necessary except on extremely heavy, extremely high-frequency or extra-wide doors
  • Lifetime of the door opening warranty
  • #12-24 TEK MS
  • “LL” model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
  • Standard lengths: 83″, 85″, *95″
  • Note: For door sizing refer to installation instructions

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material

Aluminum alloy 6063-T6; Anodized after machining
ANSI/BHMA Standard

ANSI/BHMA Certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 150 lb. Door, Grade 1 – 600 lb. Door
Fire Rating

Fire-rated 90-minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 8'0" and steel stiffened doors up to 4'0" x 7'2"
Continuous Hinge Type

Full Mortise (Concealed)
Usage

Heavy Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
