Schlage S40D SAT Tubular Bath/Bedroom Privacy Lock, Saturn Lever

Usually Ships: 1-2 Business Days

ANSI/BHMA Certified A156.2, Grade 2
F76 Function: Privacy
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Clear

Quantity:

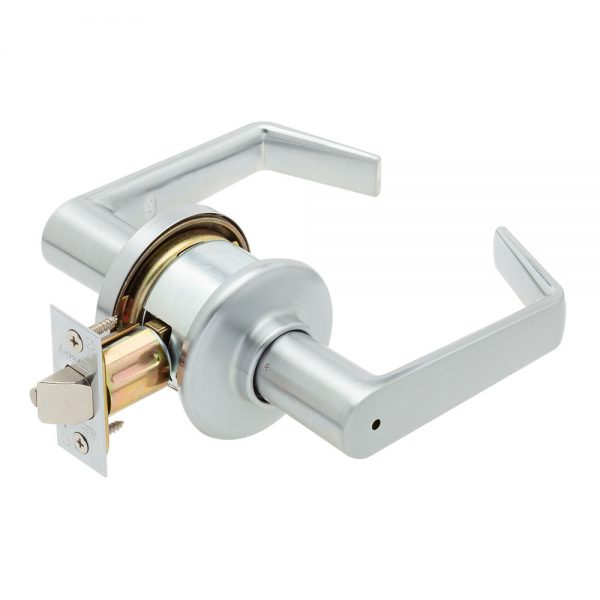

Schlage S40 SAT Grade-2 Tubular Lever Lock, Bath/Bedroom Privacy Function, Saturn Lever, Adjustable 2-3/8″ or 2-3/4″ Backset

S Series are interior-use, Grade 2 locks featuring both keyed and non-keyed functions. They are ideal for light commercial applications like small hotels and office tenant space, as well as apartment buildings. Heat treated locking components add strength while Schlage solid levers in plated zinc are engineered for long life and optimum durability. The four popular lever designs are ADA compliant with options for tactile warning.

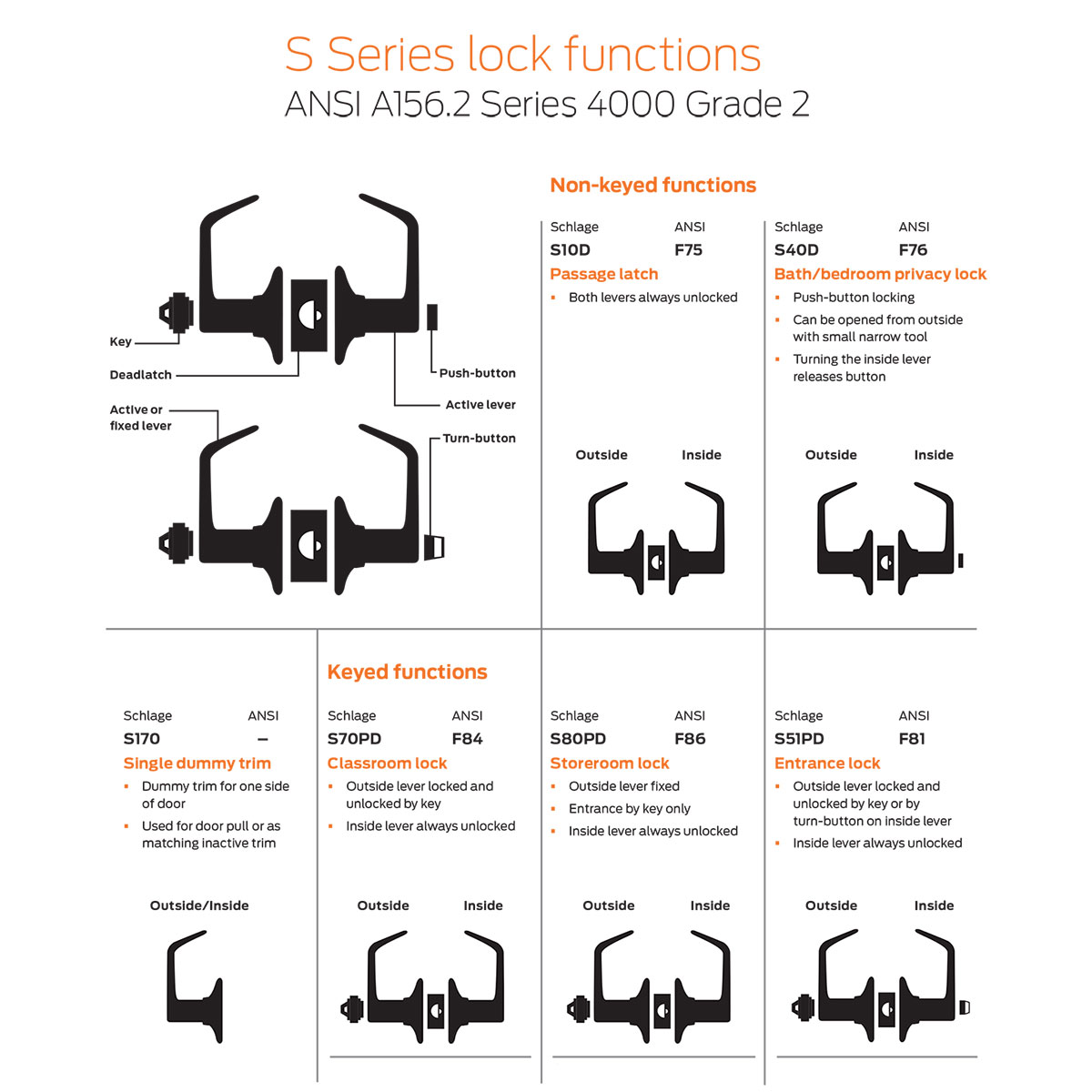

ANSI Function F76 – Push-button locking. Can be unlocked from outside with small circular tool. Turning inside lever releases button. Closing the door does not release button.

Exceeds ANSI/BHMA Grade 2 requirements
UL listed for 3-hour fire door
Heat-treated steel locking components for extra strength
Dual backset latch, fits either 2-3/8″ or 2-3/4″ backsets
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Brand	Schlage
Finishes	605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome
Lock Function	Privacy
Lever Design	SAT (Saturn)
Backset	2-3/8" to 2-3/4" Adjustable
Latch	1" x 2-1/4", Square corner faceplate, 7/8" housing diameter, 1/2" throw
Strike	1-1/8" x 2-3/4", Square corner, T-strike, box
Usage	Medium Duty
ANSI/BHMA Standard	Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing	Non-Handed
Door Thickness	1-3/8" to 1-7/8"
Warranty	3 Year Limited
