Schlage ND97PD RHO (Rhodes) Vandlgard Corridor Lever Lock

Usually Ships: 1-2 Business Days
  • Extra Heavy Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F90 – Corridor Lock
  • Vandlgard = Clutching Lever Design

Available Options:


Schlage ND97PD RHO Grade-1 Cylindrical Lever Lock, Corridor Function, Rhodes Vandlgard Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.

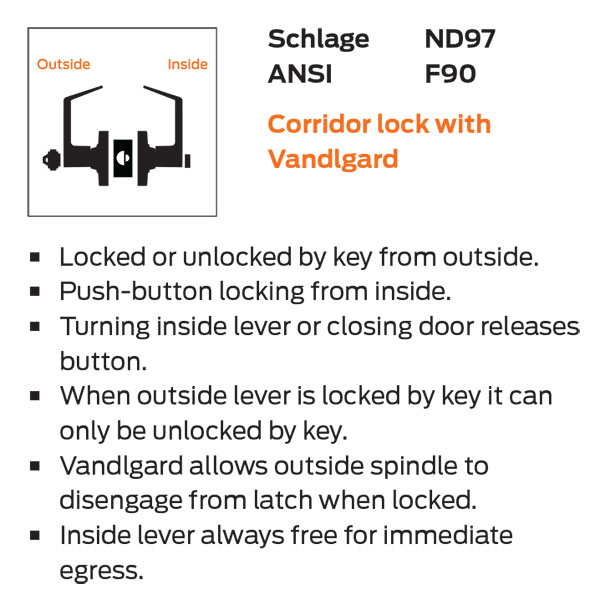

ANSI Function F90 – Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Vandlgard allows outside spindle to disengage from latch when locked. Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built



626 Satin Chrome

Lock Function



Schlage C Keyway, Schlage S123 Keyway

Lever Design

RHO (Rhodes)

Clutch Lever



Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front



Cylinder & Keys

6-pin conventional, keyed different, with 2 keys




1/2” throw, deadlocking – 1-1/8" x 2-1/4" face


4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness



10 Years
