Product Overview
Schlage ND66PD Grade 1 Store Lock, Rhodes Lever, Standard Cylinder, Satin Chrome Finish
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

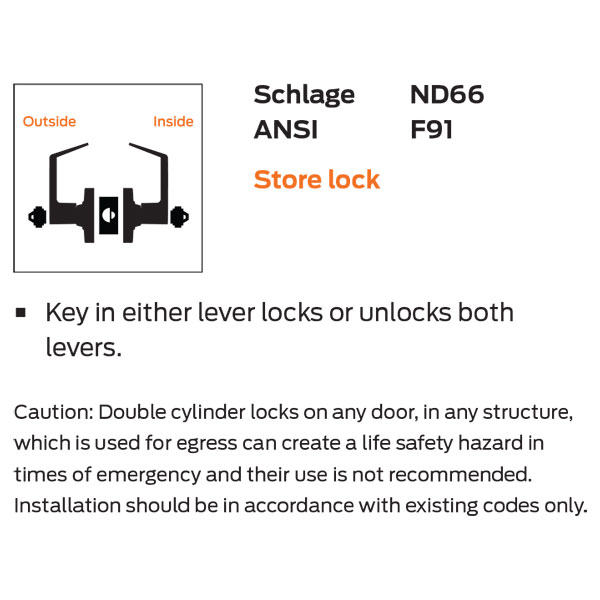

ND66 – Key in either lever locks or unlocks both levers.
Caution: Double cylinder locks on any door, in any structure, which is used for egress can create a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Significantly exceeds ANSI/BHMA Grade 1 requirements
- Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
- Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
| Brand | |
|---|---|
| Finishes | 626 Satin Chrome |
| Lock Function | Store |
| Lever Design | RHO (Rhodes) |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Keyway | Schlage C Keyway, Schlage S123 Keyway |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
| Handing | Non-Handed |
| Backset | 2-3/4" |
| Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/4" |
| Warranty | 10 Years |
