ND52-ND55-RHO-626
ND52
ND52-RHO-626_Inside
ND52-ND55-RHO-626
ND52
ND52-RHO-626_Inside

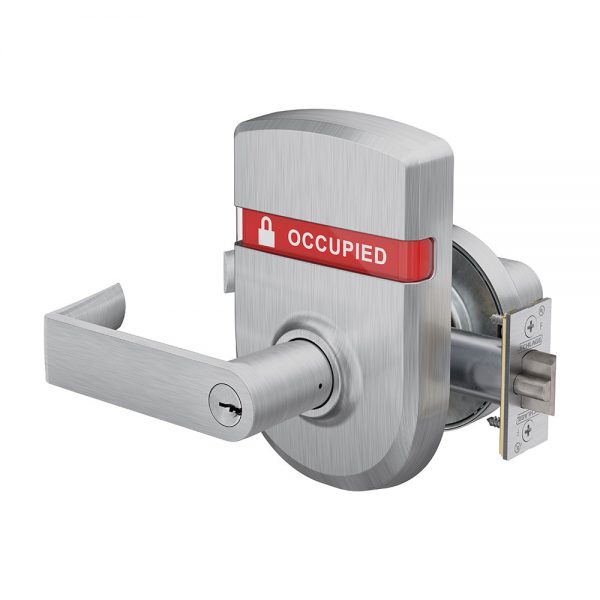

Schlage ND52PD RHO (Rhodes) Keyed Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1

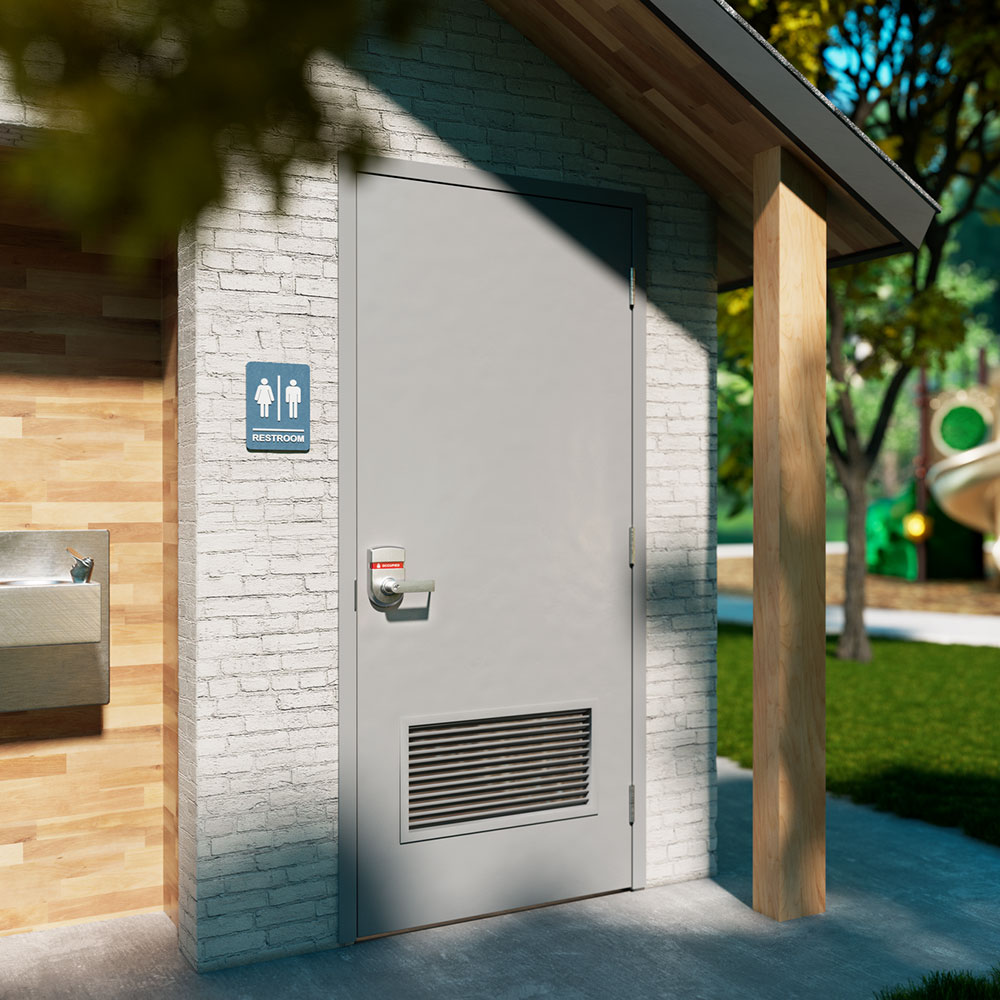

  • Ideal for high-use commercial restroom doors
  • Includes outside indicator (OCCUPIED/VACANT)

Available Options:

Product Overview

Schlage ND52PD RHO (Rhodes) Grade-1 Keyed Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

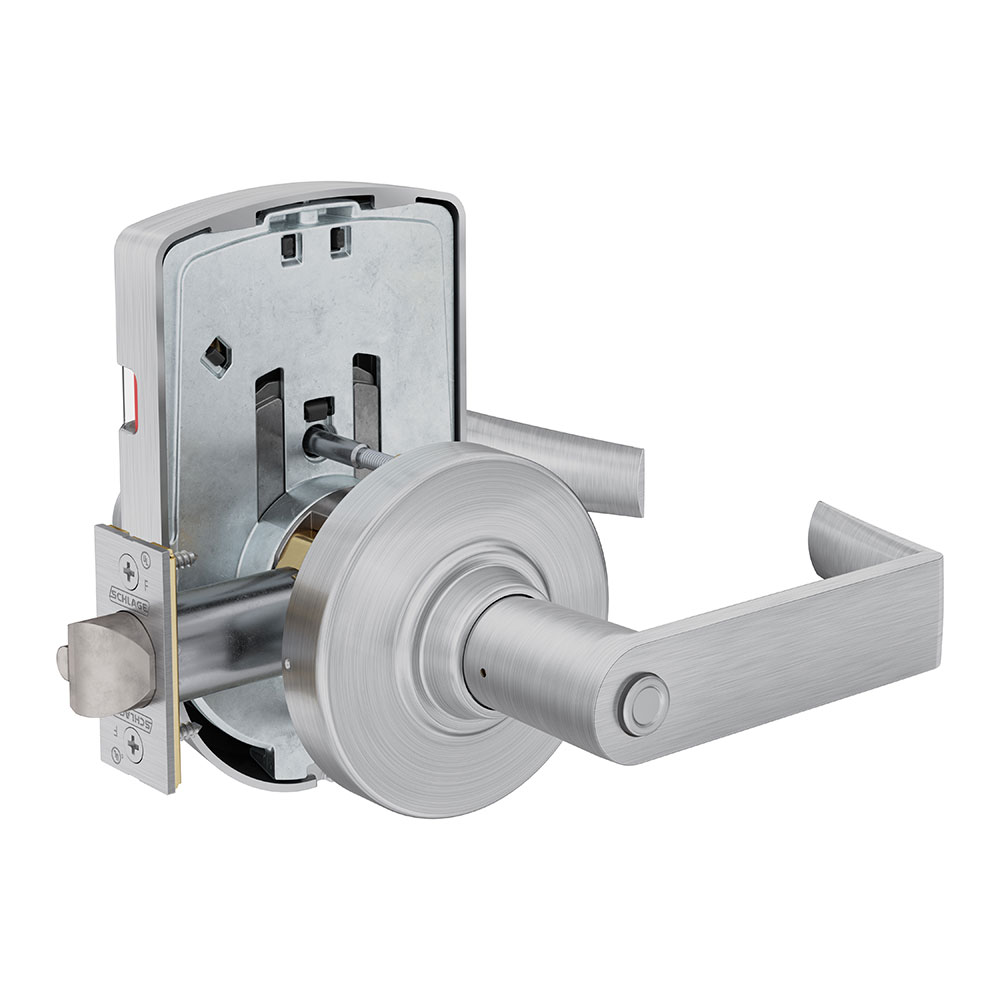

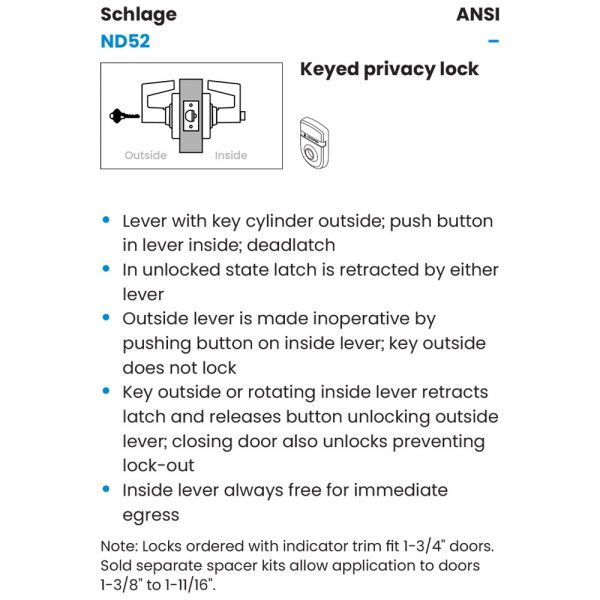

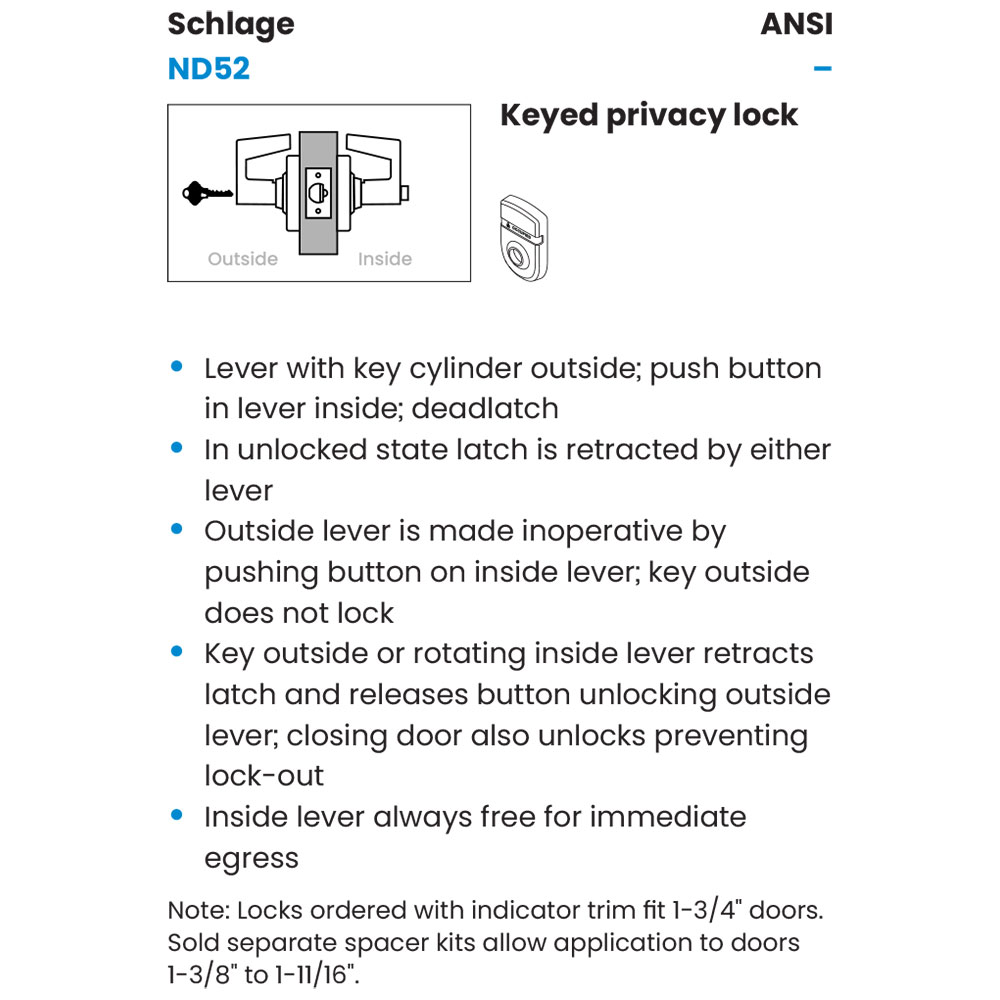

Lever with key cylinder outside; push button in lever inside; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button on inside lever; key outside does not lock • Key outside or rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lock-out • Inside lever always free for immediate egress

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Privacy with Indicator
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Handed – LH, RH
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design

RHO (Rhodes)
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
