Schlage L9480P 06A Storeroom Mortise Lock with Deadbolt, 06 Lever, A Rose

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Storeroom function with deadbolt
  • P = Conventional 6-pin full-face cylinder

Available Options:

Clear

Schlage L9480P Storeroom Mortise Lock, 06A Design, Conventional Cylinder

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

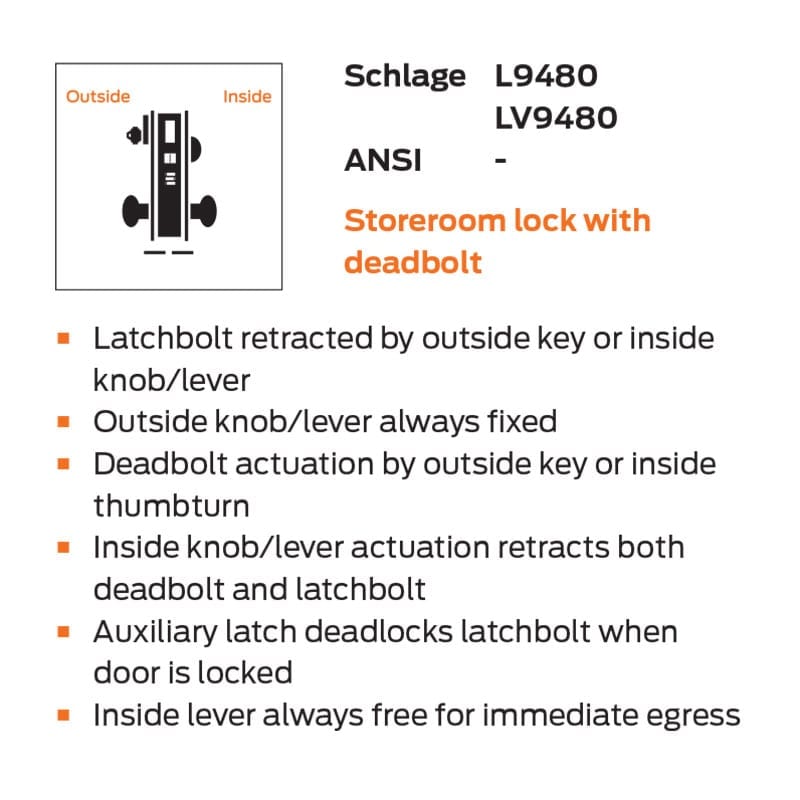

L9480 – Storeroom with Deadbolt

  • Latchbolt retracted by outside key or inside knob/leverƒ
  • Outside knob/lever always fixed
  • ƒDeadbolt actuation by outside key or inside thumbturnƒ
  • Inside knob/lever actuation retracts both deadbolt and latchboltƒ
  • Auxiliary latch deadlocks latchbolt when door is locked
  • ƒInside lever always free for immediate egress

codes

Brand

Finishes

626 Satin Chrome

Lock Function

Storeroom w/ Deadbolt

Cylinder & Keys

30-001 cylinder keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Latchbolt

3⁄4" throw stainless steel latch with anti-friction tongue

Backset

2-3/4"

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Armored Front

1-1/4" x 8" x 7/32" standard

Handing

Field-reversible handing without opening lock case

Door Thickness

1-3/4"

Lever Design

06A
