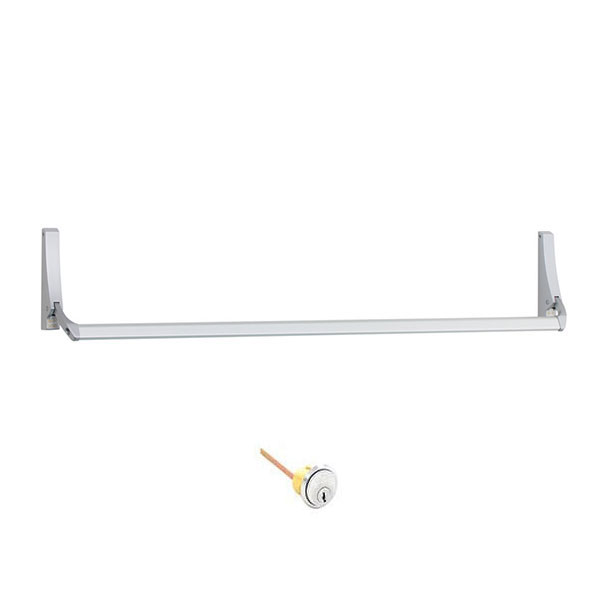

Falcon 1992NL-OP/HB-OP Concealed Vertical Rod Crossbar Exit Device with Rim Cylinder

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.3 Grade 1 certifed
  • Fits door stiles as narrow as 1-3/4″
  • Exit only (outside trim sold separately)

Available Options:

Clear

Falcon 1992NL-OP/HB-OP Concealed Vertical Rod Crossbar Exit Device, 44″, Night Latch/Hold Back, Optional Pull, with Rim Cylinder Only

Tough crossbar design.
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.

  • 1992NL-OP/HB-OP = With “C Keyway” Rim Cylinder (No Outside Trim Included)

HB-OP – Hold back, cylinder only: key retracts latch and holds latch back, no pull
NL-OP – Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

  • Aluminum cross bar and narrow stile center case to fit small stile aluminum doors
  • Ideal for retrofit commercial and retail applications, requiring a durable crossbar solution
  • Comes standard with hex dogging and concealed mounting screws
  • Field adjustable width, 44″ crossbar standard
Brand

Finishes

P13 Powder-Coated Dark Bronze, P28 Powder-Coated Aluminum

Length

44"

Vertical Rods

7' standard, extension rod kits available up to 10'

ANSI Grade

ANSI/BHMA A156.3 Grade 1

Usage

Medium Duty

Fire Rating

Non-Fire-Rated

Trim

Rim Cylinder Only

Keyway

Schlage C Keyway

Handing

Completely Reversible

Strike

PB48 top

Dogging Feature

Half turn hex dogging standard

Door Thickness

1-3/4"

Door Application

Aluminum and hollow metal door applications

Stile Type

Narrow
