Schlage L9060P 06A Apartment Entrance Mortise Lock, 06 Lever, A Rose

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function F09, Double Cylinder
  • ADA Compliant, Fire-Rated

Available Options:
Clear

Product Overview

Schlage L9060P 06A 626 Grade 1 Apartment Entrance Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Satin Chrome Finish, Field Reversible

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

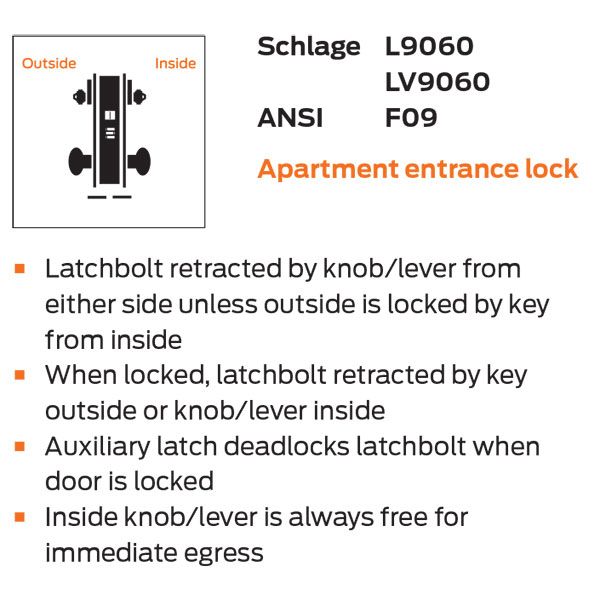

ANSI Function F09 – Latchbolt retracted by knob/lever from either side unless outside is locked by key from inside. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

Brand

Finishes

626 Satin Chrome
Lock Function

Apartment Entry
ANSI Function

F09
Lever Design

06A
Cylinder & Keys

(2) 30-001 cylinder, keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard
Case

Steel case and parts are corrosion resistant
Case Size

4-7⁄16" x 6-1⁄16" x 1"
Armored Front

1-1/4" x 8" x 7/32" standard
Handing

Field-reversible handing without opening lock case
Door Thickness

1-3/4"
