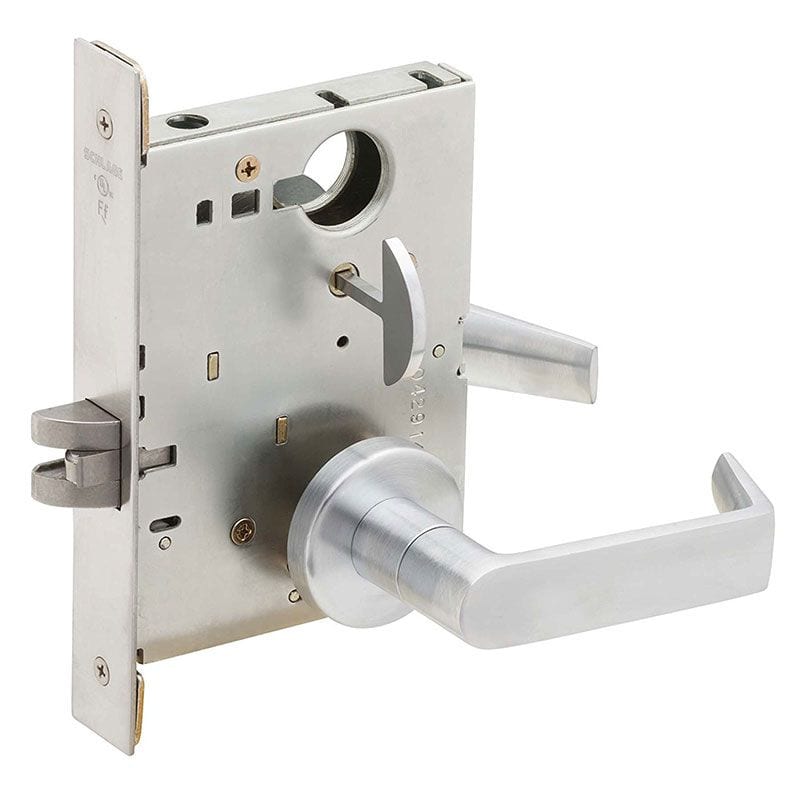

Schlage L9040 Privacy Mortise Lock, 06A Design
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
ANSI F22 – Privacy – Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn. Turning inside lever or closing door unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn (furnished) in access hole and rotate. Inside lever is always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 630 Satin Stainless Steel
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Meets ADA requirements – A117.1 Accessibility Code
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard
Steel case and parts are corrosion resistant
4-7⁄16" x 6-1⁄16" x 1"
1-1/4" x 8" x 7/32" standard
Field-reversible handing without opening lock case
