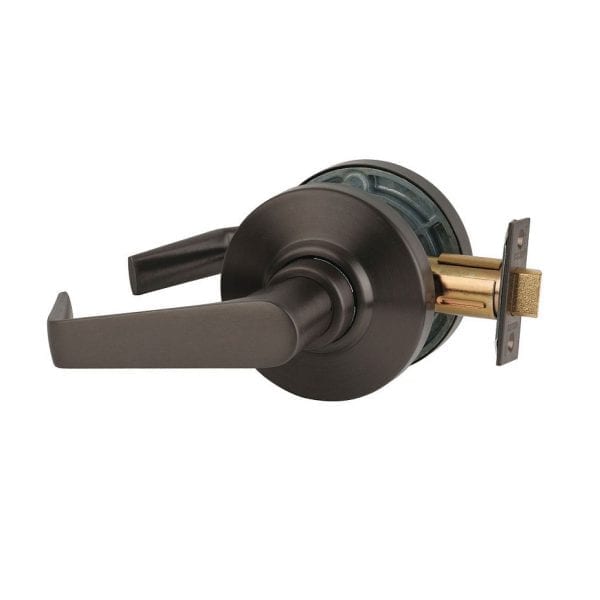

Schlage AL10S SAT (Saturn) Passage Lever

Usually Ships: 2-3 Days
  • Medium Duty – ANSI Grade 2
  • Discontinued March 2021, available while supplies last
  • Replaced by Schlage ALX10 SAT

Available Options:

Clear

AL Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance in medium-to-high-traffic areas. It is designed for office doors, closets, banks, retail spaces, hotel guest areas and many other applications.

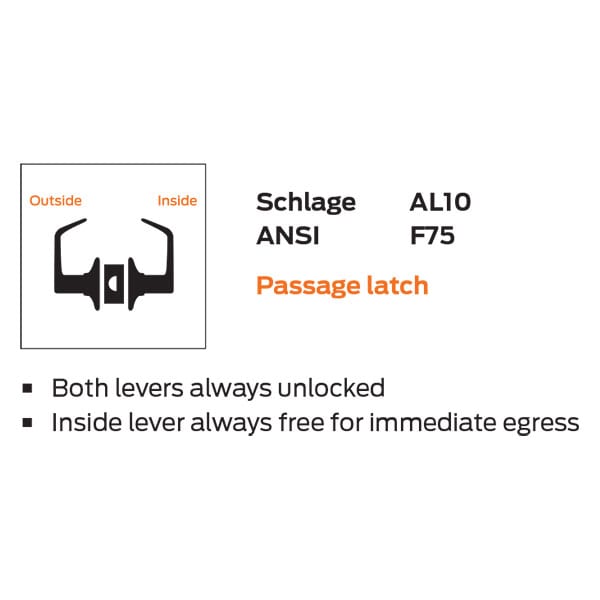

ANSI Function F75 – Both levers always unlocked; inside lever always free for immediate egress

  • Cold-rolled steel, machined and threaded hubs, and locking nuts prevent the loosening of the leverset by securely bolting the chassis to the door
  • Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8″ to 1-7/8″ thick
  • Exceeds ANSI/BHMA Grade 2 requirements for strength

Brand

Finishes

605 Bright Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial

Lock Function

Passage

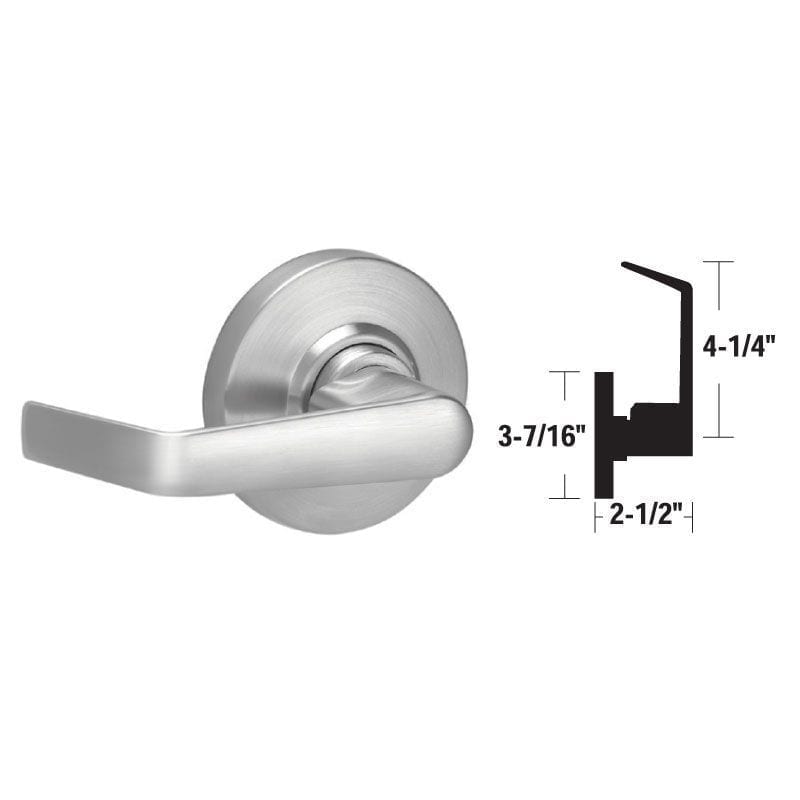

Lever Design

SAT (Saturn)

Backset

2-3/4" standard

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Warranty

Three year limited

Schlage_AL-Series_Installation_Instructions
