Product Overview
Sargent 3828/12-3828 Grade-1 Panic Rim Exit Device, 28-L-LL Lever Trim, Passage Function
The 3828 Series supports both single and double door applications and is ideal for warehouses.
- Includes 28-L-LL lever trim
- Sargent function 15: Latchbolt operated by lever
- Lever trim gets through-bolted to the exit device
- Steel end caps and covers provided added durability
- Meets ANSI A156.3 Grade 1
- UL panic listed
- 12- Option = Fire-rated

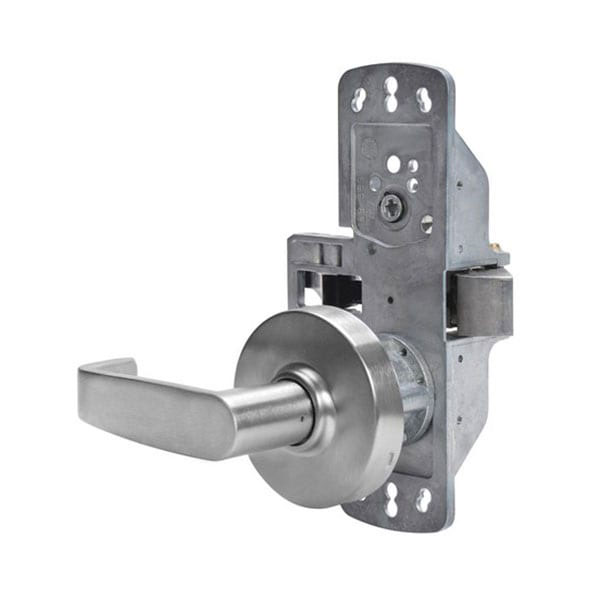

28-L-LL Trim
- ANSI Function: 14 – Latchbolt operated by lever
- L lever design
- L rose design
- LA Keyway
| Brand | |
|---|---|
| Finishes | EN/689 Sprayed Aluminum Enamel |
| Length | E – 32" (24" to 32" Doors), F – 36" (for 33" to 36" Doors), G – 48" (for 43" to 48" Doors) |
| Stile Type | Wide (Standard) |
| ANSI/BHMA Standard | ANSI/BHMA A156.3 – Grade 1 |
| Usage | Medium Duty |
| Fire Rating | 3828: Non-Fire-Rated – 12-3828: Fire-Rated up to 3 Hours |
| Lever Design | L |
| Rose Design | L |
| Handing | Non Handed – Completely Reversible |
| Dogging Feature | Hex key dogging standard on non-fired-rated devices |
| Latchbolt | Stainless steel 3/4” throw |
| Strike | 649 Strike supplied standard |
| Door Applications | 1-3/4" Metal and Wood Doors |
