Sargent-3828-EN

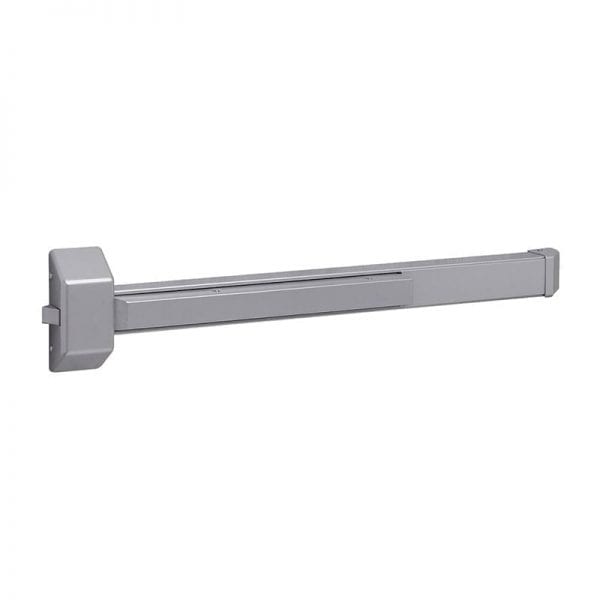

Sargent 12-3828 Fire-Rated Rim Exit Device

Usually Ships: 1-2 Business Days
  • Meets ANSI A156.3 Grade 1 standards
  • Non-handed for easy installation
  • Exit Only (outside trim sold separately)

Available Options:
Clear

Product Overview

Sargent 12-3828 Grade-1 Fire-Rated Rim Exit Device

The 3828 Series supports both single and double door applications and is ideal for warehouses.

  • Exit Only (outside trim sold separately)
  • 12- Option = Fire-rated
  • Steel end caps and covers provided added durability
  • 7 functions determined by trim selected
  • Device & trim sold separately; easy to mix and match
  • Meets ANSI A156.3 Grade 1
  • UL panic and fire listed
Brand

Finishes

EN/689 Sprayed Aluminum Enamel
Length

E – 32" (24" to 32" Doors), F – 36" (for 33" to 36" Doors), G – 48" (for 43" to 48" Doors)
Stile Type

Wide (Standard)
ANSI/BHMA Standard

ANSI/BHMA A156.3 – Grade 1
Usage

Medium Duty
Fire Rating

UL/cUL listed up to 3 Hours
Handing

Non Handed – Completely Reversible
Dogging Feature

None
Latchbolt

Stainless steel 3/4” throw
Strike

649 Strike supplied standard
Door Applications

1-3/4" Metal and Wood Doors
