Product Overview

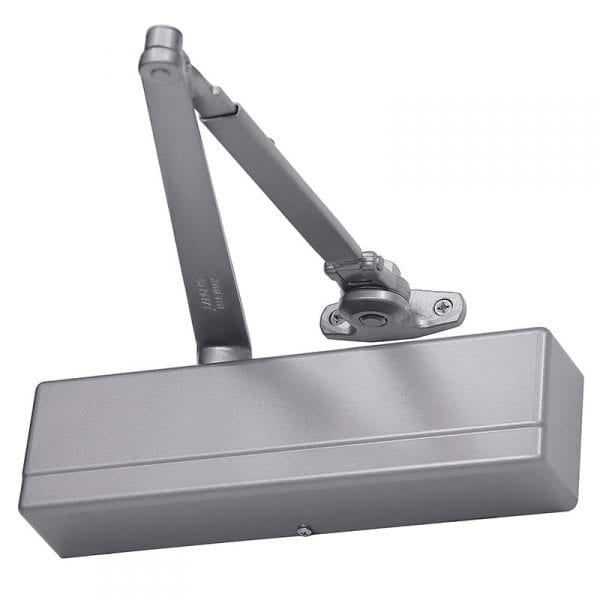

1431 Series Powerglide® Door Closer with UH Hold Open Arm Package
Featuring heavy-duty construction for superior strength and wear resistance, the 1431 Series Powerglide® Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.
- UH – Universal hold open arm package provides brackets and arms to install closer in top jamb, standard or parallel applications
- Operates effectively in extreme heat and cold without readjustment
- Meets ADA requirements in all applications
| Brand | |
|---|---|
| Finishes | EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel, BSP Black Suede Powder Coat |
| Templating (Hole Pattern) | 1" x 11-1/8" |
| Usage | Heavy Duty |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| ANSI/BHMA Standard | ANSI/BHMA Grade 1 156.4 standards |
| Fire Rating | Non-Rated with Hold Open Arm |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fasteners | Packed w/Thru Bolts (TB), Wood & Machine Screws |
| Cover | Full Cover |
| Spring Size | Adjustable Spring Size 1-6 |
| Handing | Non-Handed |
| Warranty | 25 Year Limited |
