Sargent 10XG17-LL Heavy Duty Utility, Asylum or Institutional Lever Lockset

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F87 Asylum or Institutional (Double Cylinder)

Available Options:

Clear

Product Overview

Sargent 10XG17 Grade-1 Cylindrical Lock, Utility, Asylum or Institutional Function, L Lever, L Rose, Conventional Cylinder

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.

  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Exceeds ANSI/ BHMA Grade 1 standards – by as much as 20 times

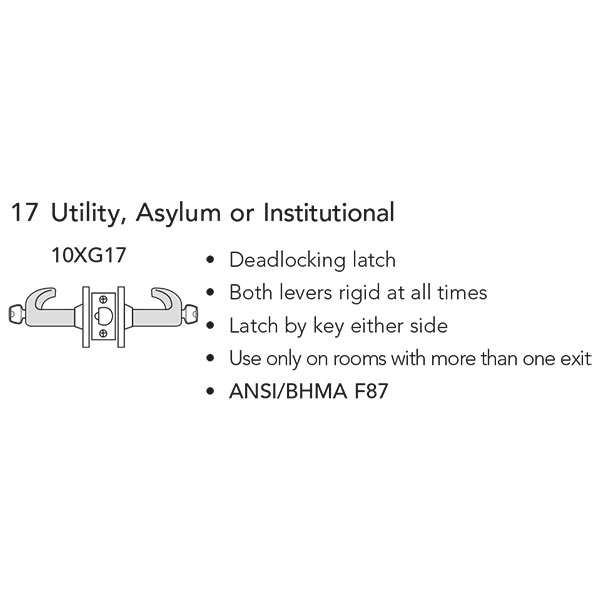

ANSI F87 Utility, Asylum or Institutional

  • Deadlocking latch
  • Both levers rigid at all times
  • Latch by key either side
  • Use only on rooms with more than one exit

Applications

  • Heavy-duty commercial and institutional interior and exterior doors
  • Offices
  • Schools/Universities
  • Hospitals
  • Manufacturing facilities

codes

Brand

Finishes

BSP Black Suede Powder Coat, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome
Lock Function

Institution / Asylum
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Cylinder & Keys

6-pin conventional, 0-bitted, with 2 keys
Keyway

Sargent LA Keyway
Backset

2-3/4"
Lever Design

L
Rose Design

L
Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"
Latch

Stainless Steel Deadlocking/Guarded Latch – 1/2” throw, 1-1/8" x 2-1/4" face
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
Minimum Stile Width

4-1/2"
Warranty

10 Year Limited
