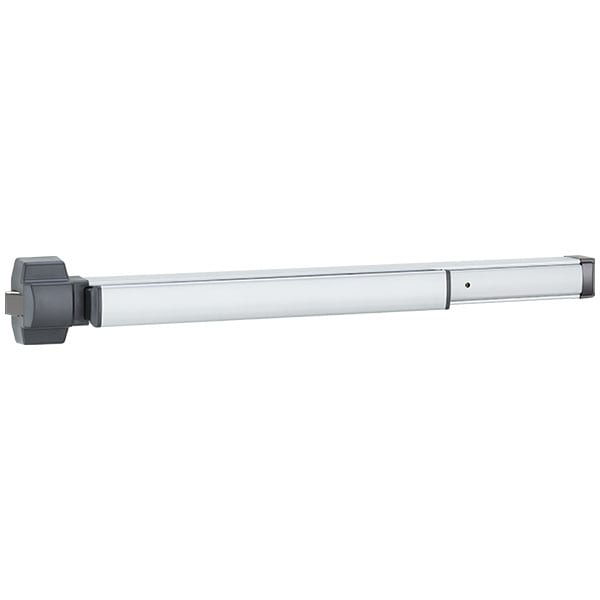

Precision 5114-814A Reliant Rim Panic Exit Device with Passage Lever

Usually Ships: 10-20 Days
  • Grade-1 – ANSI/BHMA Certified – Made in USA
  • An Economical Pushbar Exit Device
  • Includes 814A Passage Lever Trim

Available Options:

Clear

Economical Grade 1 Pushbar Exit Device with Passage Lever Trim

For the right choice in high-traffic areas, rely on the design and durability of the Reliant 5000 Series.

The Reliant 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-use, multifamily, and commercial office spaces. With a stainless steel chassis, the Reliant 5000 Series is durable and designed to fit the standard ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. And all Reliant 5000 Series exit devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

  • 689 Painted Aluminum Finish
  • Deadlocking Latchbolt Standard

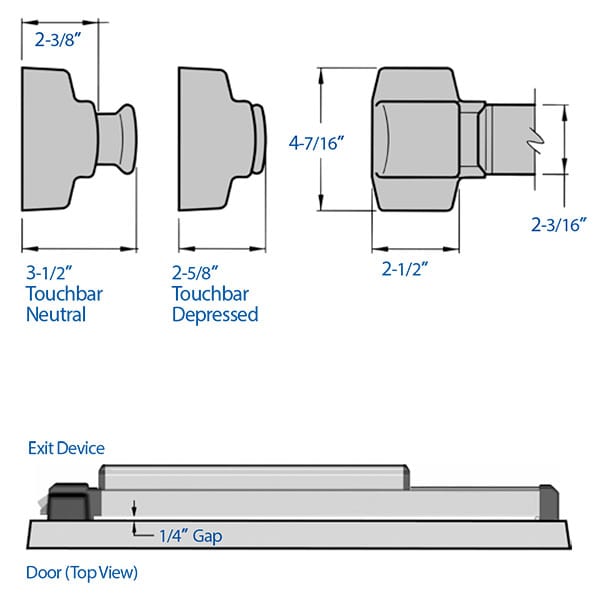

  • Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
  • Stock Sizes: 3′ and 4′ – Cut to size in field
  • 5114 x 814A model: Non-fire-rated (with hex dogging)
  • FL5114 x 814A model: 3 Hour fire-rated (no dogging)

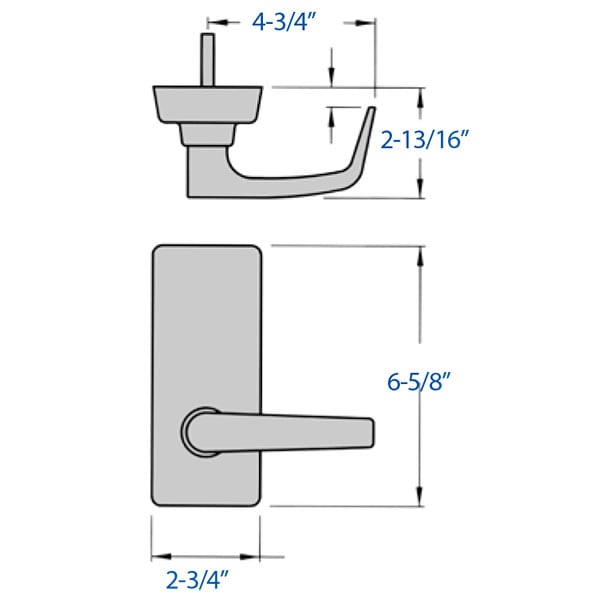

814A Lever Trim

  • ANSI Function: 14 (lever always active)
  • Escutcheon plate size: 2-3/4″ x 6-5/8″
  • Projection: 2-13/16″
  • Field reversible – ships as RHR

made-in-usa

Brand

Length

3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Finishes

689 Aluminum

Usage

Medium Duty

ANSI Grade

ANSI Grade 1

Fire Rating

5100 Non-Rated – FL5100 3-Hour Fire-Rated

Trim

814A Lever Trim

Function

Passage

Stile Type

Wide (Standard)

Handing

Easily Re-handed in the field – Shipped as RHR

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strike

S300, stainless steel, black powder coated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
