Product Overview
Economical Grade 1 Pushbar Exit Device with Night Latch Pull Trim
For the right choice in high-traffic areas, rely on the design and durability of the Reliant 5000 Series.
The Reliant 5000 Series is a cost-effective Grade 1 exit device option for applications such as retail, hospitality, mixed-use, multifamily, and commercial office spaces. With a stainless steel chassis, the Reliant 5000 Series is durable and designed to fit the standard ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. And all Reliant 5000 Series exit devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
- 689 Painted Aluminum Finish
- Deadlocking Latchbolt Standard
- Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
- Stock Sizes: 3′ and 4′ – Cut to size in field
- 5103 x 603 model: Non-fire-rated (with hex dogging)
603 Pull Trim
- ANSI Function: 03 (Key locks/unlocks pull)

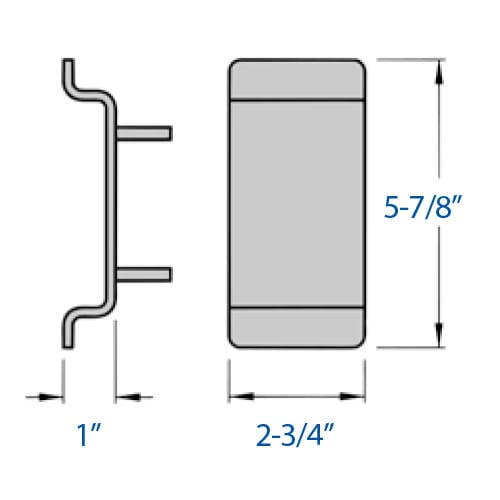

- Escutcheon plate size: 2-3/4″ x 5-7/8″
- Projection: 1″
- Non-handed
- Requires rim cylinder (sold separately)
Brand | |
---|---|
Length | 3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
Finishes | 689 Aluminum |
Usage | Medium Duty |
ANSI Grade | ANSI Grade 1 |
Fire Rating | Non-Fire-Rated |
Trim | 603 Night Latch Pull |
Function | Night Latch Pull |
Cylinder | 1-1/8" Rim Cylinder (Sold Separately) |
Stile Type | Wide (Standard) |
Handing | Non Handed – Completely Reversible |
Latchbolt | Stainless steel, 3/4" throw – Deadlocking |
Strike | S300, stainless steel, black powder coated |
Dogging Feature | Half turn hex dogging standard |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
