Pemko RVARIOSS_ ADA Compliant Variable Ramp Assembly – 13-1/2″ Wide x 1/4″ to 1-1/4″ Offset

Usually Ships: 5-10 Business Days
  • 13-1/2″ wide total ramp length
  • Adjusts for 1/4″ to 1-1/4″ offsets
  • Barrier-free, ADA compliant, ICC/ANSI A117.1

Available Options:
Clear

Product Overview

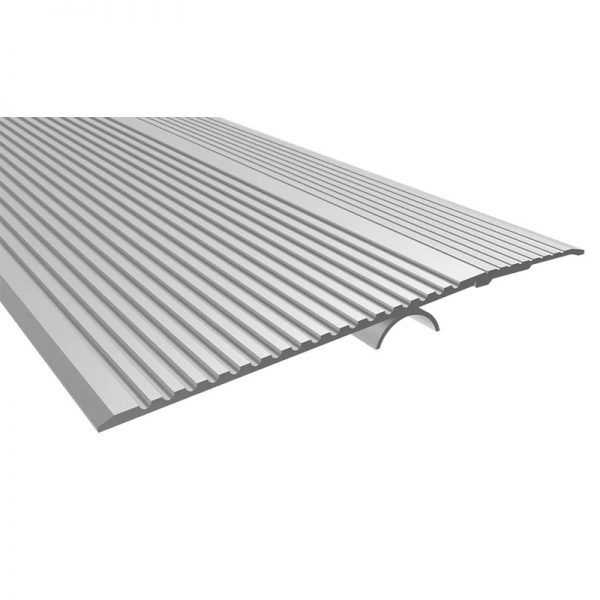

Pemko RVARIOSS Series Variable Ramp Assembly, 13-1/2″ Wide, Adjusts for 1/4″ to 1-1/4″ Offsets

The RVARIOSS Variable Ramp Assembly with a 3 1/2″ top plate is a versatile solution for creating wheelchair accessible entryways. This assembly allows for smooth and easy transitions between different height surfaces and adjusts for 1/4″ to 1-1/4″ offsets. It includes RAMP2, RAMP7, and RAMP8 components. With its durable construction and adjustable design, it provides a reliable and customizable ramp system for individuals with mobility needs.

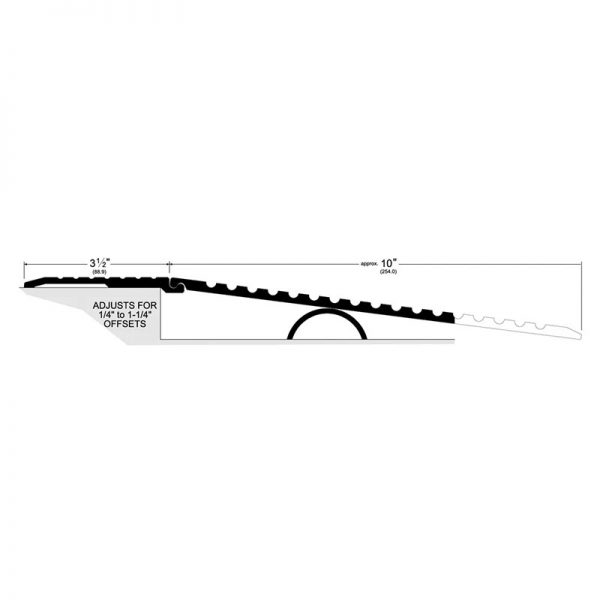

  • Total ramp length: 13-1/2″ (342.9 mm)
  • Total plate length: 3-1/2″ (88.9 mm)
  • Ramp components length: 10″ (254.0 mm)
  • Offset: 1/4″ to 1-1/4″ (6.4 mm – 31.8 mm)
  • Number of components: 3
  • Assemblies are supplied with #10 stainless steel wood screws
  • Assemblies are provided NET length
  • Mill finish (optional Pemkote skid resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • RVARIOSSA: A – Mill Finish Aluminum Aluminum
  • RVARIOSSAK: AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

13-1/2"
Height

1-1/4"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
