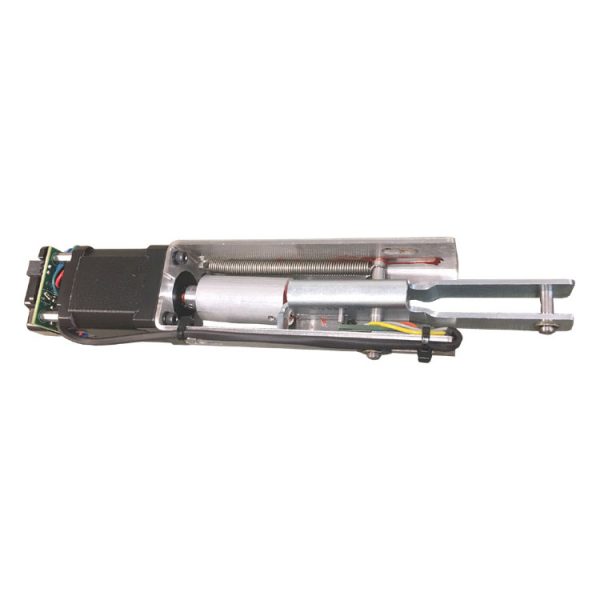

Command Access MLRK1-CAL77 Motorized Latch Retraction Kit for Cal-Royal 7700 Series Exit Devices

Command Access MLRK1-CAL77 Motorized Latch Retraction Kit, for Cal-Royal 7700 Series Exit Devices (Field Installation)

The MLRK1-CAL77 is a cost-effective and straightforward way to upgrade your Cal Royal 7700 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The new MLRK1-CAL77 is a practical and cost-effective way to convert a mechanical Cal-Royal 77 or PD26 series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and for peace of mind is backed by CAT’s 3-Year No Hassle Warranty. It easily secures onto the back- activating bracket and is secured with (2) screws, in a matter of seconds. The only hole you’ll need to drill is for the wire raceway. PTS allows for a smooth post-installation adjustment of the latch/latches. Last but not least, it features an updated MM4S module with 3 different energy consumption settings from energy conscious to high torque to get the tough jobs done! The only hole you’ll need to drill is the raceway! It utilizes our PTS “Push to Set” technology making post-installation adjustments incredibly easy.

• Works with all Cal-Royal 7700 Series devices
• Fast, Quite, Smooth & Strong!
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• Low Current Draw – Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire – Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• Electric dogging rated for continuous duty – Auto reengage if push pad is pulled from dogged position
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage Range – 24 TO 28 VDC
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard – Average Current Peak: 900 mA, Average Current Hold: 190mA
• High Torque – Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4″
• Wire Run: 300′ with 18ga wire
• Cutdown details: 36” – 3.75”, 48” –
• Built-in (REX) Request-to-Exit kit optional
