Pemko 671 Concealed Fastener Saddle Threshold – 5″ Wide x 1/4″ High

Usually Ships: 10-15 Business Days

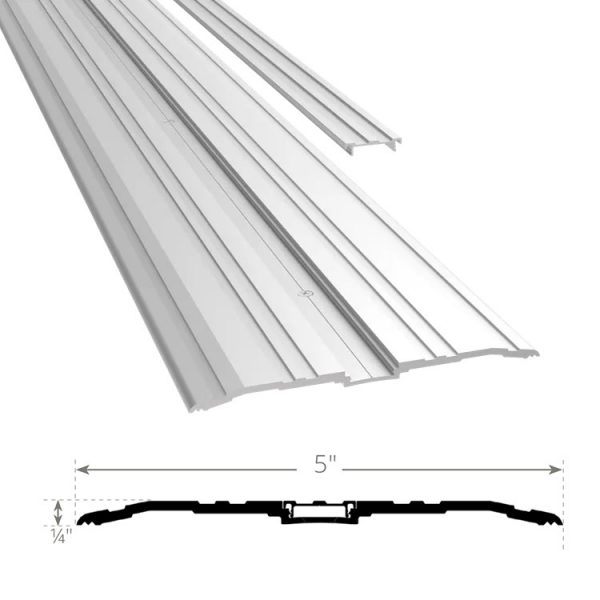

  • 5″ Wide x 1/4″ High
  • Snap cover conceals fasteners in the opening
  • Discourages tampering, aesthetically pleasing

Available Options:

Clear

Pemko 671_ Fluted Saddle Threshold, Concealed Fasteners, ADA Compliant, 5″ W x 1/4″H

The 1/4″ high x 5″ wide innovative 651 Series Concealed Fastener Flat Saddle Threshold features a snap-on cover that conceals all fasteners in the opening, allowing for a smoother, more consistent threshold surface. These ADA compliant, retrofittable models provide a flat area for a door bottom sweep or shoe to seal against.

Features:

  • Snap cover conceals fasteners in the opening
  • Suitable for retrofit applications
  • Provides a flat surface for door bottom sweep or shoe to seal against
  • Standard #10 zinc-plated steel fasteners; optional threshold fastener types available
  • Provided with standard hole pattern in the recessed channel
  • UL listed to UL10B and UL10C for positive pressure
  • ADA compliant, meets ANSI J32100, J32130

Benefits:

  • Aesthetically pleasing – Threshold surface is smooth and consistent
  • Discourages tampering
  • Acts as a non-combustible sill in the opening
  • Can be L- or U-notched to fit around the frame

Applications

  • Healthcare
  • Hospitality
  • Office Buildings

pemko-ratings-threshold



Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum

Length

36", 48", 72", 96"

Width

5"

Height

1/4"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
