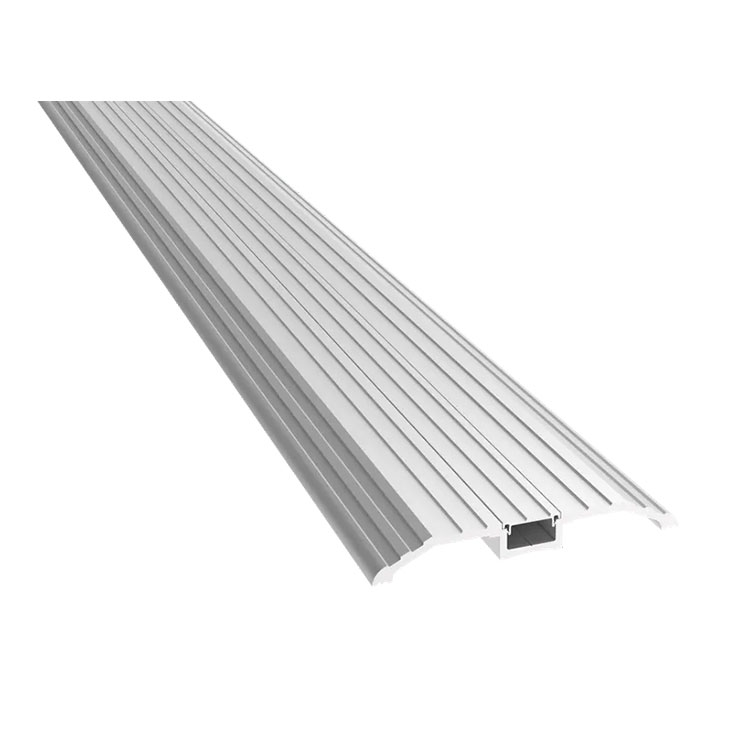

Pemko 650 Concealed Fastener Saddle Threshold – 4″ Wide x 1/2″ High

Usually Ships: 10-15 Business Days

4″ Wide x 1/2″ High

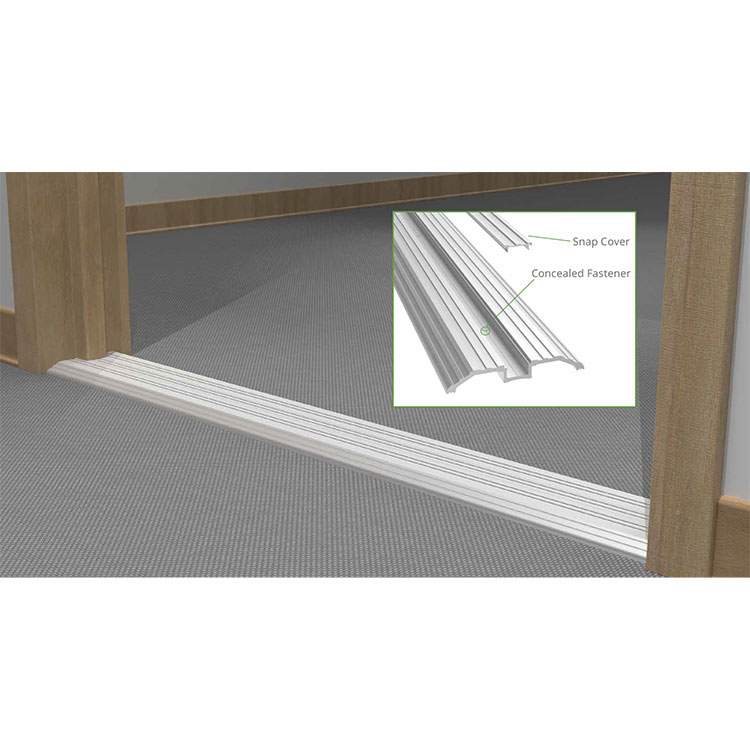

Snap cover conceals fasteners in the opening
Discourages tampering, aesthetically pleasing

Available Options:

Finish
Length	Clear

Quantity:

Pemko 650_ Fluted Saddle Threshold, Concealed Fasteners, ADA Compliant, 4″ W x 1/2″H

The 1/2″ high x 4″ wide innovative 650 Series Concealed Fastener Flat Saddle Threshold features a snap-on cover that conceals all fasteners in the opening, allowing for a smoother, more consistent threshold surface. These ADA compliant, retrofittable models provide a flat area for a door bottom sweep or shoe to seal against.

Features:

Snap cover conceals fasteners in the opening
Suitable for retrofit applications
Provides a flat surface for door bottom sweep or shoe to seal against
Standard #10 zinc-plated steel fasteners; optional threshold fastener types available
Provided with standard hole pattern in the recessed channel
UL listed to UL10B and UL10C for positive pressure
ADA compliant, meets ANSI J32100, J32130

Benefits:

Aesthetically pleasing – Threshold surface is smooth and consistent
Discourages tampering
Acts as a non-combustible sill in the opening
Can be L- or U-notched to fit around the frame

Applications

Healthcare
Hospitality
Office Buildings

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum
Length	36", 48", 72", 96"
Width	4"
Height	1/2"
ANSI/BHMA Standard	ANSI/BHMA A156.21
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	Up to 3 Hours with metal doors; 90 minutes with wood doors
