Pemko 29326_NB (MS) Brush Seal Meeting Stile Split Astragal with Snap Cover (Concealed Fasteners)

Usually Ships: 10-15 Business Days
  • Surface mount to each door of pair (sold per piece – 2 required for pair)
  • Concealed fasteners (snap cover)
  • Air infiltration tested and fire-rated

Available Options:

Clear

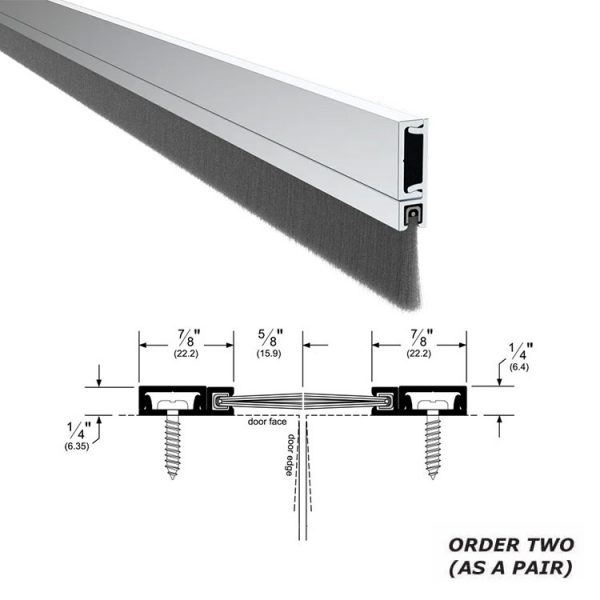

Pemko 29326_NB (MS) Split Astragal with Concealed Fasteners

Brush meeting stile astragals are used to seal the gap between pairs of doors (screwed onto the surface of each door). Typically used on pairs with vertical rod exit devices and/or push/pull setups.

  • When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.
  • Brush/Meeting Stile Application
  • This meeting stile is supplied with a Nylon Brush (“NB”) insert
  • PROFILE WIDTH: 7/8” (22.2 mm) (x2)
  • TOTAL WIDTH WITH INSERT: 1-1/2” (38.1 mm) (x2)
  • HEIGHT: 1/4” (6.4 mm)

Note: brush should mesh from 1/32″ to 1/16″

Finishes

  • 29326CNB: C – Clear Anodized Aluminum with Nylon Brush insert
  • 29326BSPNB: BSP – Black Suede Powder Coat Aluminum with Nylon Brush insert
  • 29326DNB: D – Dark Bronze Anodized Aluminum with Nylon Brush insert

Ratings

  •  BHMA Certified
  •  Air Infiltration Tested
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

84", 96"

Fire Rating

Fire Rated – UL10C – Positive Pressure
