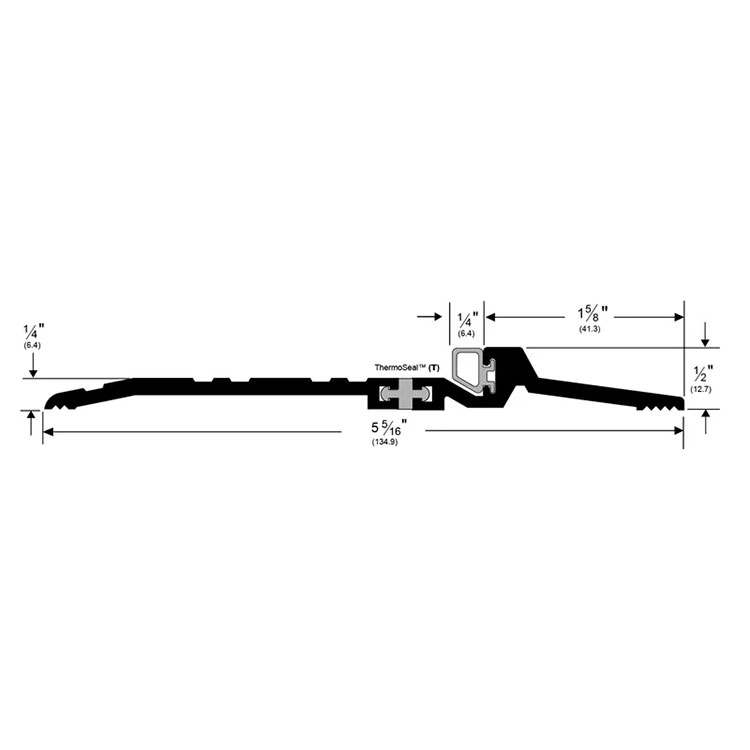

Pemko 273x224_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert – 5-5/16″ Wide x 1/2″ High

Usually Ships: 10-15 Business Days
  • 5-5/16″ Wide x 1/2″ High
  • Improves thermal performance
  • Includes a ThermoSeal insert

Available Options:
Clear

Product Overview

Pemko 273x224_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert – 5-5/16″ Wide x 1/2″ High

The 273_FG Series Thermal Barrier Threshold offers versatile configurations. Enhancing thermal performance, a black rigid polypropylene key between these extrusions acts as a thermal break (FG-Frost Guard), minimizing the transfer of hot and cold temperatures.

  • Integrated channel to connecting thermal keys
  • Rigid polypropylene key between extrusions provides thermal break
  • Includes frost guard
  • ADA accessible if butted to a 1/4″ offset
  • Improves thermal performance by minimizing transfer of hot and cold temperatures

Certifications

  • GREENGUARD Gold Certified
  • UL 10C positive pressure
  • UL 4L10 listed
  • ASTM E-283-04 (2012)
  • ASTM E 90-2009
  • Americans with Disabilities Act (ADA) Compliant
  • ANSI/BHMA A117.1
  • ANSI/BHMA A156.21 Thresholds
Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length

36", 48", 72", 96"
Width

5-5/16"
Height

1/2"
ADA Compliance

ADA Compliant
Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
