Product Overview

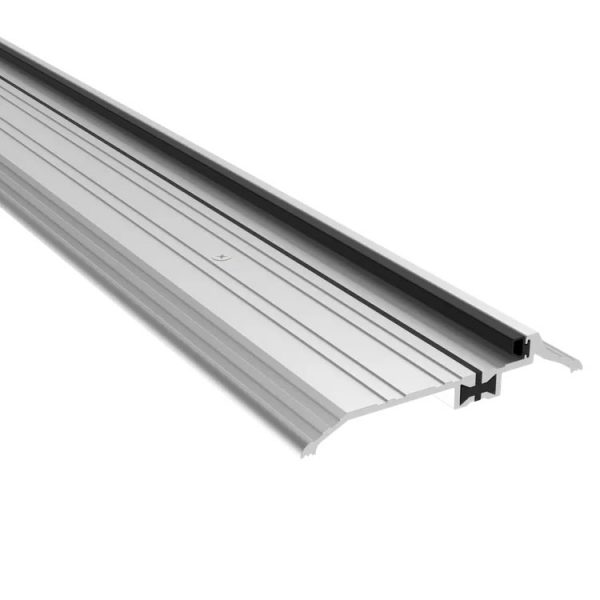

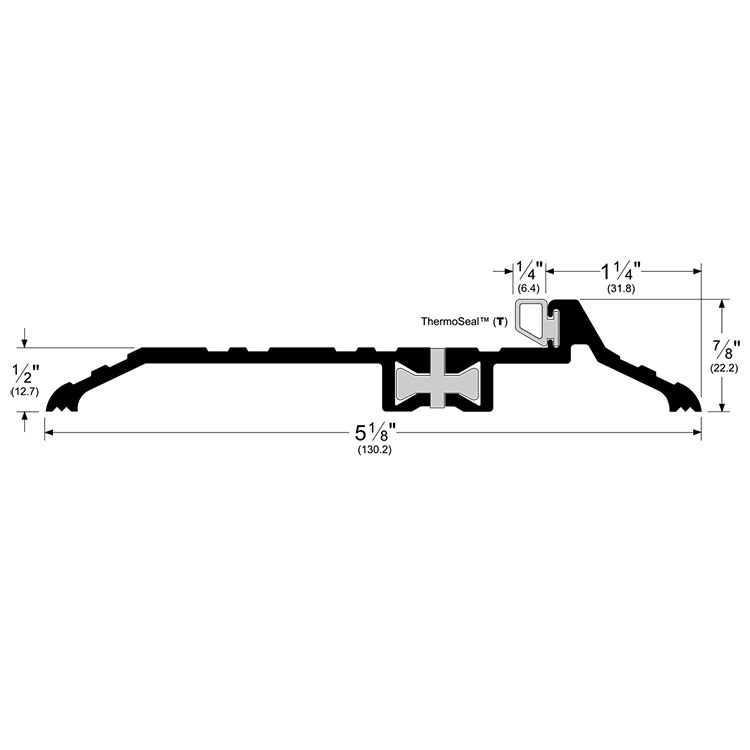

Pemko 253x226_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert – 5-1/8″ Wide x 7/8″ High
The 253×226 Series Latching Panic Saddle Threshold has a 5-1/8″ width (welded on the bottom) and allows for a 5/8″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket ThermoSeal (T) seal. This threshold is sound, air infiltration tested, fire rated, and BHMA certified. Enhancing thermal performance, a black rigid polypropylene key between these extrusions acts as a thermal break (FG-Frost Guard), minimizing the transfer of hot and cold temperatures.
- Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
- Allow 5/8″ door clearance
- Welded on bottom
- Fire-rated
- Includes ThermoSeal insert
- Frost Guard for extra weather protection
- Polypropylene thermal break prevents conductivity of hot or cold from exterior to interior
- Significantly reduces heat and cold transfer lowering energy usage
- ADA accessible if butted to a 1/2″ offset
- Improves thermal performance by minimizing transfer of hot and cold temperatures
- Integrated stop provides excellent sealing at the bottom of the door
- Protects against sound, wind, debris, and more
Certifications
- GREENGUARD Gold Certified
- UL 10C positive pressure
- UL 4L10 listed
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.21 Thresholds
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 36", 48", 72", 96" |
Width | 5-1/8" |
Height | 7/8" |
Fire Rating | Up to 3 Hours with metal doors; 90 minutes with wood doors |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
