Product Overview
Pemko 234_V Door Shoe
This door shoe is supplied with a Eco-V® (“V”) insert
Smoke Tested – UL1784 – tested in accordance with UL 1784-2001Air Leakage Tests of Door Assemblies, and meet the performance criteria for allowable air leakage as specified in NFPA 105-99 Installation of Smoke Control Door Assemblies. Meets the requirements for category H – Smoke Seals.

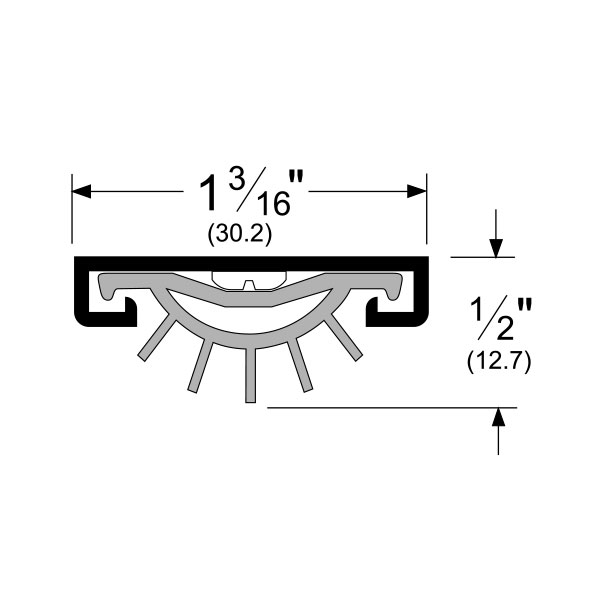

- WIDTH: 1-3/16” (30.2 mm)
- TOTAL HEIGHT WITH INSERT: 1/2” (12.7 mm)
Finishes
- 234AV: A – Mill Finish Aluminum Aluminum with Gray Eco-V insert
- 234BSPV: BSP – Black Suede Powder Coat Aluminum with Black Eco-V insert
- 234DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert
Ratings
- BHMA Certified
- Smoke Tested – UL1784
- Fire Rated – UL10C
- GREENGUARD Gold Certified
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 36", 48" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
