Product Overview
Pemko 209_V Door Bottom Shoe with Eco-V Vinyl Insert

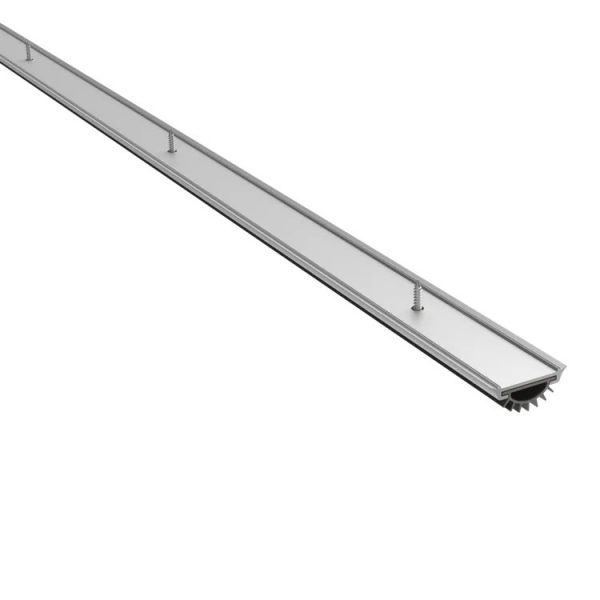

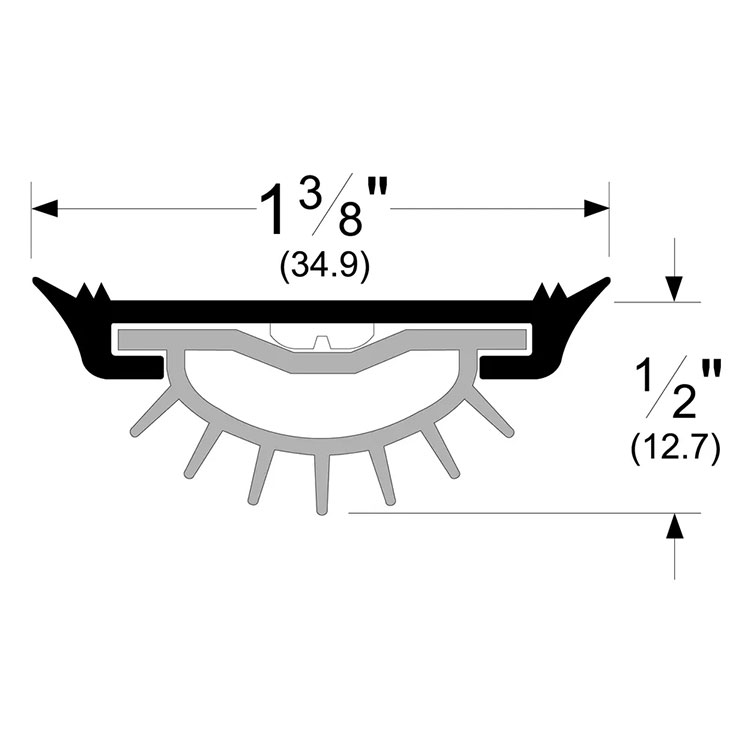

The 209_V Series with Eco-V insert is a bottom plate door shoe that provides a strong seal against smoke, fire, dust, drafts, and light without compromising on the appearance of the door. It features an aluminum track with a .5″ fingered vinyl seal that can be applied to doors with a minimum thickness of 1.375″.
- Slotted holes for easy adjustment
- Recommended compression of gasket is 1/16″
- Provides protection for the bottom of the door
- Seals the area under a door with minimal effect on the appearance of the face of the door
- Blocks unwanted airflow and light, and provides privacy
Certifications
- GREENGUARD Gold Certified
- UL 1784 – Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
| Brand | |
|---|---|
| Length | 36", 48" |
| Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
