Pemko 2343_V Hospitality Door Bottom Shoe with Eco-V Vinyl Insert

Usually Ships: 10-15 Business Days
  • Ideal for hospitality and hotel applications
  • Allows airflow but blocks light and sound
  • Fire-rated, sound, and smoke tested

Available Options:

Clear

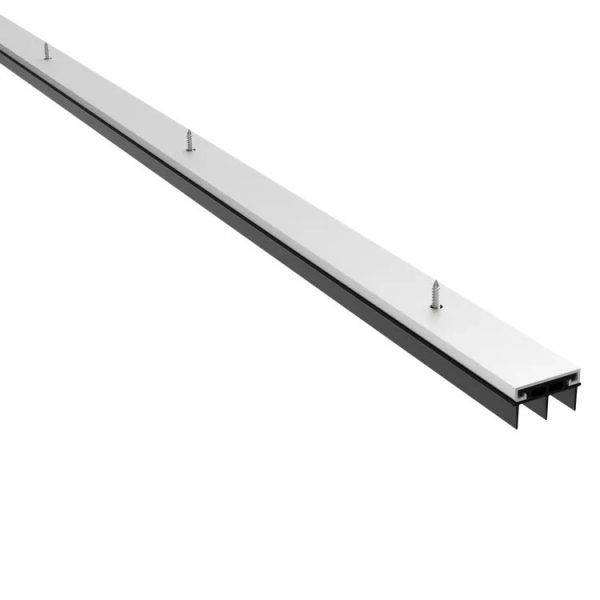

Pemko 2343_V Hospitality Door Bottom Shoe with Eco-V Vinyl Insert

The 2343_V Simple Bottom Plate Door Shoe with triple fin gaskets is perfect for sealing the gap under doors to prevent light, moisture, dust, drafts, air, sound, smoke, and fire infiltration. It features a black, pliable Eco-V seal and can be notched for 50% free air flow or un-notched for achieving sound/smoke rating. The door shoe is compatible with doors greater than 1.18″ thick.

Insert is constructed of soft, pliable black vinyl with an alternate notching pattern, allowing HVAC systems and bathroom fans to circulate air under the door while still blocking light and noise.

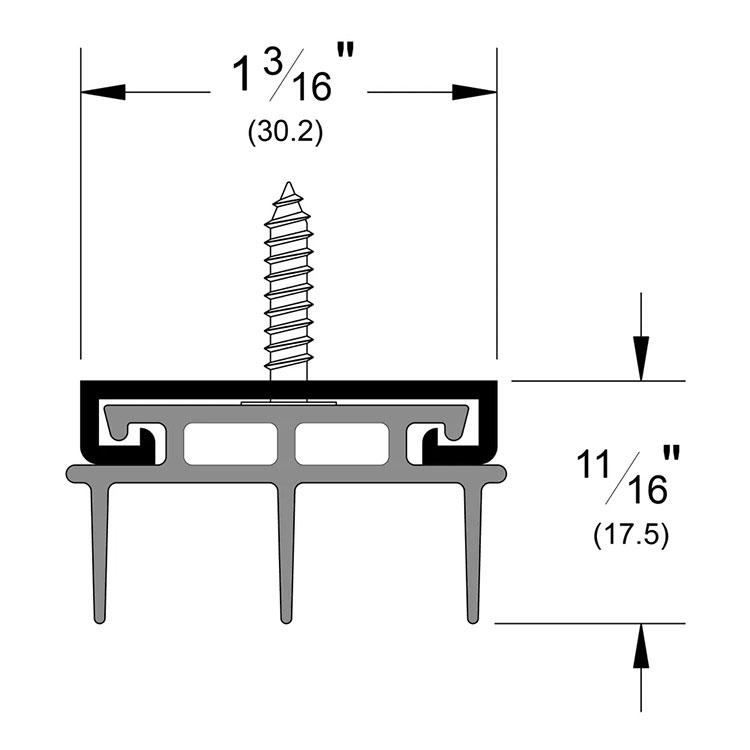

  • WIDTH: 1-3/16” (30.2 mm)
  • TOTAL HEIGHT WITH INSERT: 11/16” (17.5 mm)

Finishes

  • 2343AV: A – Mill Finish Aluminum Aluminum with Black Eco-V insert
  • 2343BSPV: BSP – Black Suede Powder Coat Aluminum with Black Eco-V insert
  • 2343DV: D – Dark Bronze Aluminum with Black Eco-V insert

Ratings

  •  Smoke Tested – UL1784
  •  Air Infiltration Tested
  •  Sound Tested – ASTM E90
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

pemko-ratings

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

36", 48"

Fire Rating

Fire Rated – UL10C – Positive Pressure
