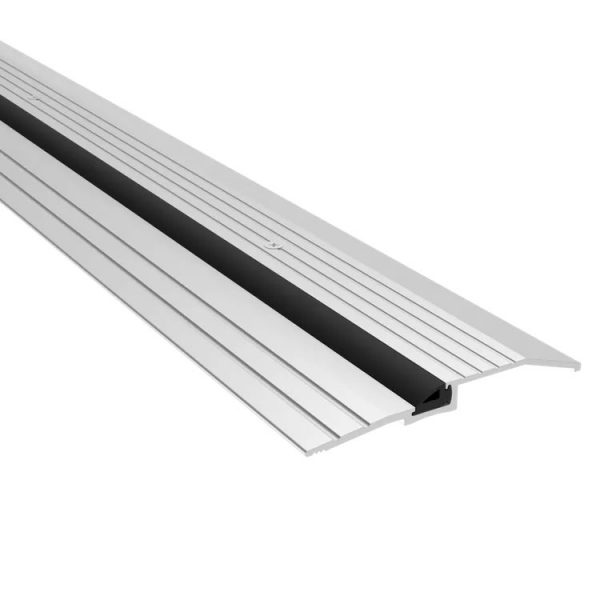

Pemko 2010_PK Latching Panic Saddle Threshold with PemkoPrene Insert – 5″ Wide x 1/2″ High

Usually Ships: 10-15 Business Days
  • 5″ Wide x 1/2″ High
  • ADA compliant and fire-rated
  • High compression seal for excellent sound control

Available Options:

Clear

Pemko 2010_PK Latching Panic Saddle Threshold w/ PemkoPrene Insert

The 2010_PK Latching Panic Saddle Threshold is designed to work with surface applied vertical rod exit devices. It features an integrated PemkoPrene gasket that creates a seal against the door, offering protection against sound, air infiltration, wind, and debris. This threshold is ideal for acoustic applications and is predrilled and supplied with appropriate length screws for easy installation. It is also certified for fire ratings, non-skid, and barrier-free use.

  • ADA Compliant
  • This threshold is supplied with a PemkoPrene® (“PK”) insert

Finishes

  • 2010APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
  • 2010BSPPK: BSP – Black Suede Powder Coat Aluminum with Black PemkoPrene insert
  • 2010DPK: D – Dark Bronze Aluminum with Black PemkoPrene insert

Ratings

  • Air Infiltration Tested
  • Sound Tested – ASTM E90
  • Barrier-Free
  • BHMA Certified
  • Fire Rated – UL10C – Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

2008pk-codes

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

36", 48", 72", 96"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
