NGP (National Guard) L-VGLF-WD Security Vision Lite Kit Pack with 1/2″ High Impact Polycarbonate Glazing

$218.20

This item ships FREE! Usually Ships: 10-20 Business Days
  • Complete Lite Kit = 9″ x 9″ Frame, Glazing, and Silicone Sealant
  • Includes 1/2″ clear high-impact polycarbonate, nearly indestructible
  • Features a steel hinged panel

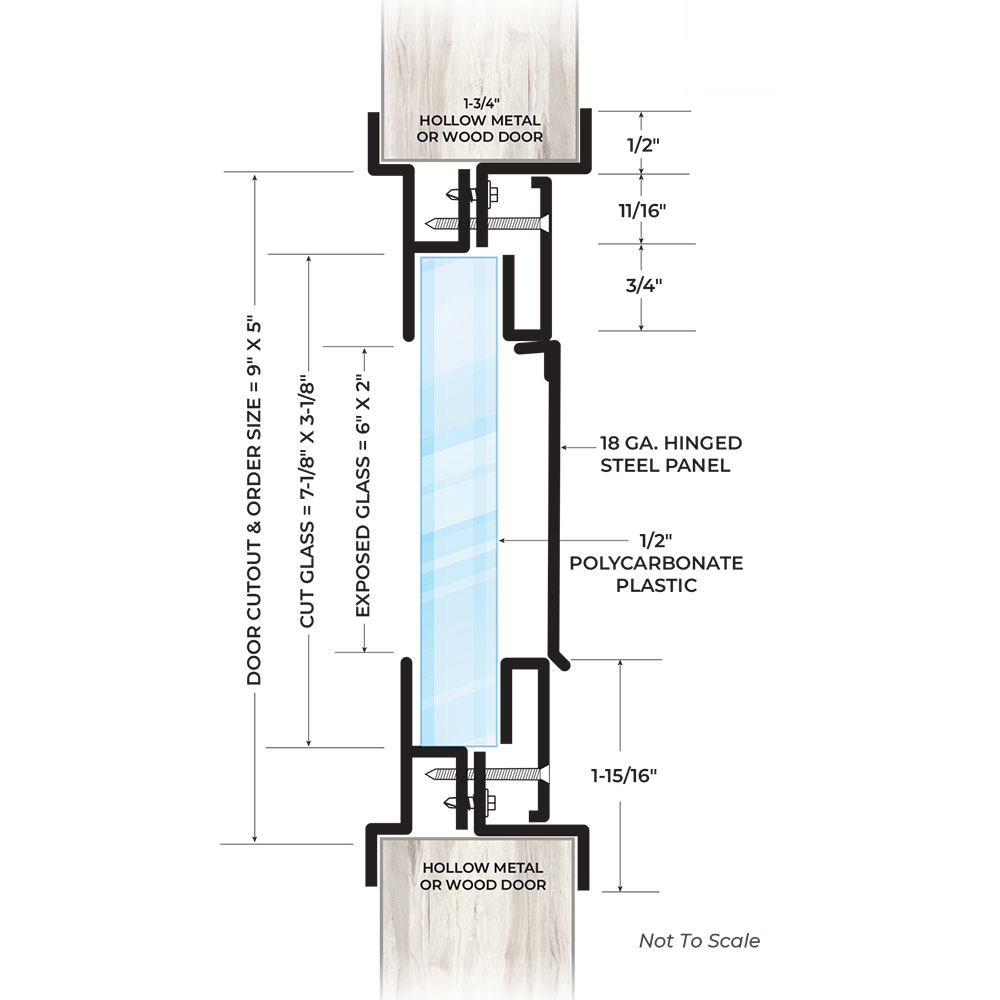

9″ x 5″ Security lite kit with high impact polycarbonate glazing for 1-3/4″ thick doors

  • 18 Ga. Cold Rolled Steel
  • Mitered and Welded Corners
  • For 1-3/4″ Hollow Metal or Wood Doors
  • 1/2″ Thick High Impact Polycarbonate Plastic
  • 18 Ga. Steel Hinged Panel
  • No Exposed Fasteners on Outside of Door
  • Low-Profile Frame
  • Cutout Size is Equal to Order Size: 9″ x 5″
  • 6″ X 2″ Exposed Glass Size
  • #8 X 1″ Oval Head Tek Screws
  • 2.8 Oz. Silicone Sealant Included
  • Gray Primer (GPZ) Powder Coat Finish
  • Designed for Use on 1-3/4″ Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16″





This product is made to order and is non-returnable or refundable.

Brand

Order Size

9" x 5"

Finishes

GPZ – Gray Primer

Frame Profile

Low

Glass Type

Polycarbonate

Glass Thickness

1/2"

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Oval head TEK screws

Fire Rating

None

Door Thickness

1-3/4"
