NGP (National Guard) L-VGLF-MD/MDL Security Vision Lite Kit Pack with Security Grille and 1/2″ High Impact Polycarbonate Glazing

Usually Ships: 10-20 Business Days
  • Complete Lite Kit = Frame, Glazing, and Silicone Sealant
  • Includes 1/2″ clear high impact polycarbonate, nearly indestructible
  • For use with 1-3/4″ thick steel or wood doors

Available Options:

Clear

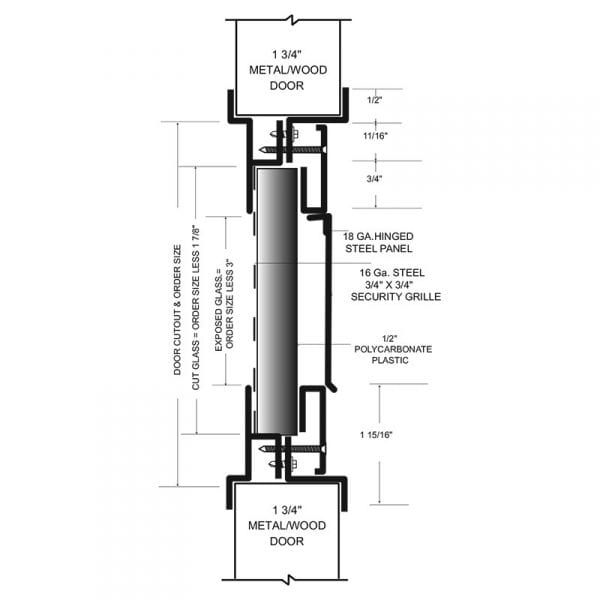

Vison lite kit with security grille and high impact polycarbonate glazing for 1-3/4″ thick doors

  • L-VGLF-MD (9″ x 9″ order size = door cut out size)
  • L-VGLF-MDL (12″ x 12″ order size = door cut out size)
  • 18 ga. cold rolled steel
  • Mitered and welded corners
  • 16 ga. steel 3/4″ x 3/4″ security grille
  • 18 ga. steel hinged panel
  • 6″ x 6″ exposed glass size on L-VGLF-MD
  • 9″ x 9″ exposed glass size on L-VGLF-MDL
  • 1/2″ thick high impact clear polycarbonate plastic
  • No exposed fasteners on outside of door
  • Low-profile frame
  • 2.8 oz. Silicone sealant included
  • Gray Primer (GPZ) powder coat finish





This product is made to order and non-returnable or refundable.

Brand

Order Size

9" x 9", 12" x 12"

Finishes

GPZ – Gray Primer

Frame Profile

Low

Glass Type

Polycarbonate

Glass Thickness

1/2"

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Oval head TEK screws

Fire Rating

None

Door Thickness

1-3/4"
