L-VGLF-SF
NGP-L-VGLF-SF
L-VGLF-SF
NGP-L-VGLF-SF

NGP (National Guard) L-VGLF-SF Security Vision Lite Kit Pack with 1/4″ High Impact Polycarbonate Glazing

$329.85

This item ships FREE! Usually Ships: 10-20 Business Days
  • Complete Lite Kit = 11″ x 11″ Frame, Glazing, and Silicone Sealant
  • Includes 1/4″ clear high-impact polycarbonate, nearly indestructible
  • Features a steel security grille and hinged panel with bolt latch

Product Overview

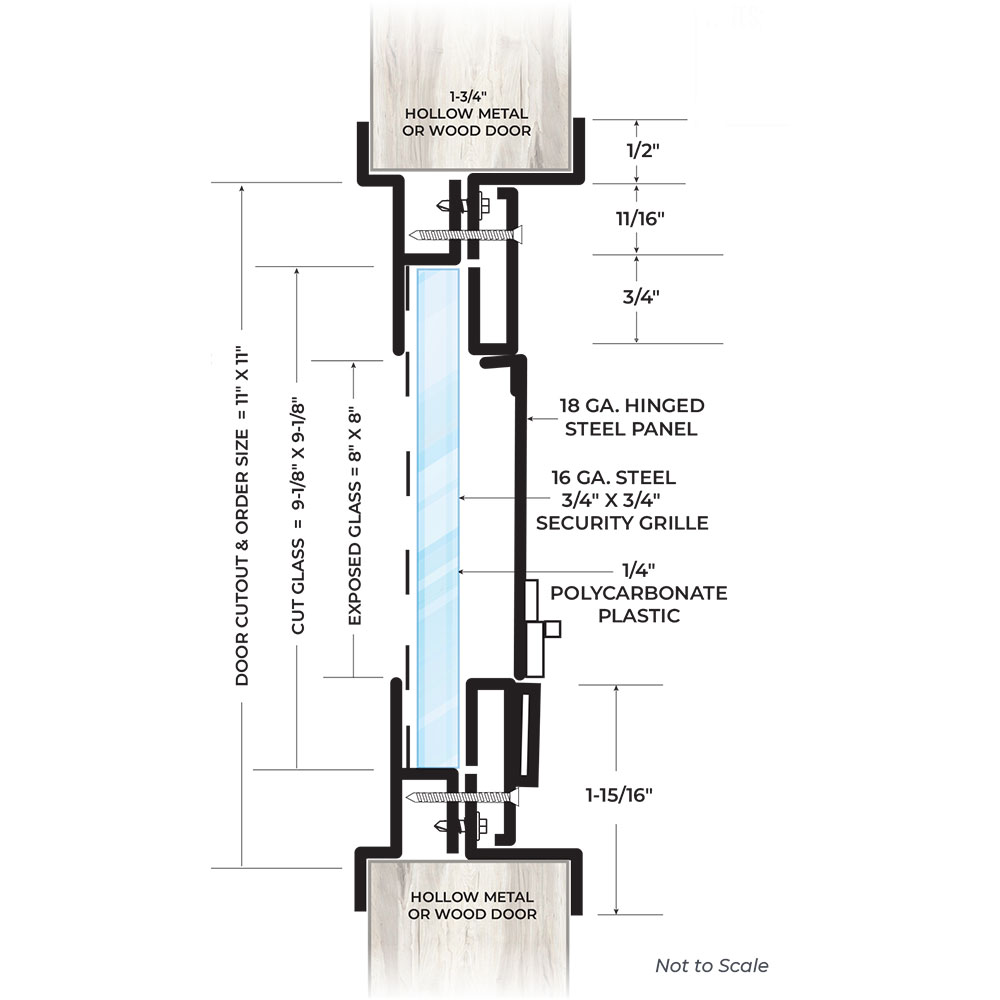

11″ x 11″ Security lite kit with high impact polycarbonate glazing for 1-3/4″ thick doors

  • 18 Ga. Cold Rolled Steel
  • Mitered and Welded Corners
  • For 1-3/4″ Hollow Metal or Wood Doors
  • 1/4″ Thick High Impact Polycarbonate Plastic
  • 16 Ga. Steel 3/4″ x 3/4″ Security Grille
  • 18 Ga. Steel Hinged Panel with Bolt Latch
  • No Exposed Fasteners on Outside of Door
  • Low-Profile Frame
  • Cutour size equal to order size: 11″ x 11″
  • 8″ x 8″ Exposed Glass Size
  • #8 x 3/4″ Oval Head TEK Screws
  • 2.8 oz. Silicone Sealant Included
  • Gray Primer (GPZ) Powder Coat Finish
  • Designed for Use on 1-3/4″ Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16″





This product is made to order and non-returnable or refundable.

Brand

Order Size

11" x 11"
Finishes

GPZ – Gray Primer
Frame Profile

Low
Glass Type

Polycarbonate
Glass Thickness

1/4"
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Oval head TEK screws
Fire Rating

None
Door Thickness

1-3/4"
