Marks USA 195NB Communicating Passage Lever Lock

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 certified
  • ANSI function: F111
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Marks USA 195NB Lever Lockset, Communicating Passage Function, Heavy-Duty Grade-1, American Lever Design

The retractor is cast stainless steel with bronze roller bearings for ultra-high strength, smooth operation & long life. When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch. This reduces the torque applied to the outside lever. Other locksets with Rigid levers are prone to failure because of excessive torque.

ANSI Function F111 – Blank plate outside. Deadlocking latch by inside lever.

  • High quality, longer lasting, lower maintenance design
  • Competitively priced for exceptional value
  • Exceeds BHMA Grade 1 Spec by 300%, over 3.6 million cycles
  • Marks lifetime mechanical warranty
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Exit / Communicating

Lever Design

American

Usage

Heavy Duty

ANSI Grade

Meets ANSI A156.2, Grade 1 Standards

Fire Rating

UL Listed up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Backset

2-3/4"

Latch

9/16" throw – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Warranty

Limited Lifetime Warranty

Related Products

  • trudoor-cl2-111-exit-latch

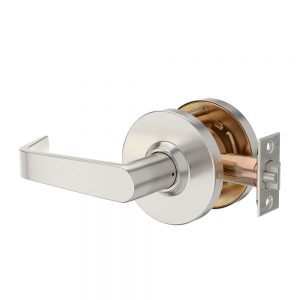

    Trudoor - CL2-111 Communicating Passage/Exit Latch Lever Set

    Starting at: $49.92
    Usage: Medium Duty
  • Marks-195-KIL-26D

    Marks USA - 195AB Entry Lever Lock

    Multiple Finishes
    Starting at: $170.10
    Usage: Heavy Duty
  • Marks-195L-26D

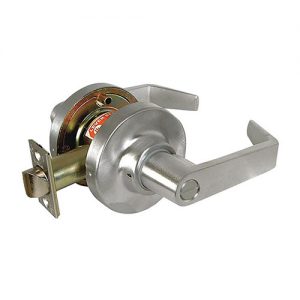

    Marks USA - 195L Privacy Lever Lock
