Product Overview

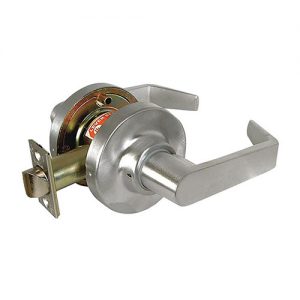

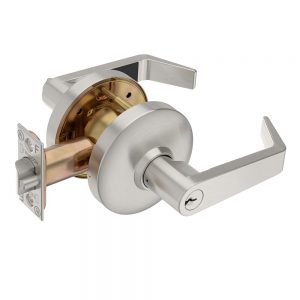

Marks USA 195AB Lever Lockset, Entry Function, Heavy-Duty Grade-1, American Lever Design
The Grade 1 Survivor is supplied with 6-pin cylinders in Marks “C” keyway with 2 nickel-silver keys. The retractor is cast stainless steel with bronze roller bearings for ultra-high strength, smooth operation & long life. When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch. This reduces the torque applied to the outside lever. Other locksets with Rigid levers are prone to failure because of excessive torque.
ANSI Function F109 – Turn / push button locking: Pushing and turning inside button locks outside lever, requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Inside lever always free for immediate egress.
- High quality, longer lasting, lower maintenance design
- Unique stainless steel “clutch” and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
- Competitively priced for exceptional value
- Exceeds BHMA Grade 1 Spec by 300%, over 3.6 million cycles
- Marks lifetime mechanical warranty
Brand | |
---|---|
Finishes | US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome |
Lock Function | Entry (Entrance) |
Keyway | Schlage C Keyway |
Lever Design | American |
Usage | Heavy Duty |
ANSI Grade | Meets ANSI A156.2, Grade 1 Standards |
Fire Rating | UL Listed up to 3 Hours |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Backset | 2-3/4" |
Latch | 9/16" throw, deadlocking – 1-1/8" x 2-1/4" face |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non Handed – Completely Reversible |
Warranty | Limited Lifetime Warranty |
