Marks USA 195DB Classroom Intruder Lever Lock

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 certified
  • ANSI Function F110, Intruder Classroom
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

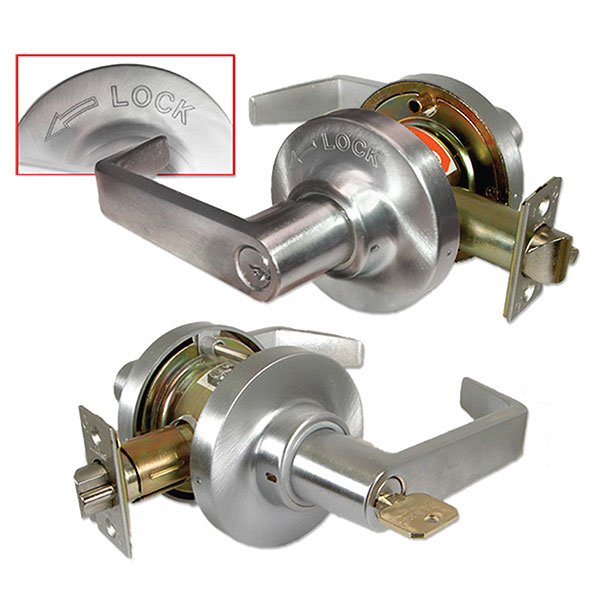

Marks USA 195DB Lever Lockset, Classroom Intruder Function, Heavy-Duty Grade-1, American Lever Design

The Grade 1 Survivor is supplied with 6 pin cylinders in Marks “C” keyway with 2 nickel-silver keys. The retractor is cast stainless steel with bronze roller bearings for ultra-high strength, smooth operation & long life. When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch. This reduces the torque applied to the outside lever. Other locksets with Rigid levers are prone to failure because of excessive torque.

Typical Classroom function locksets are designed to be locked or unlocked from the exterior, with the interior always in an open position. The new LocDown Classroom Intruder Locksets by MARKS USA, are designed to be locked or unlocked from the exterior, always open on the interior, but allows in emergency life safety situations, the teacher to secure the classroom without stepping into the hallway to lock the outside handle.

ANSI Function F110 – For classroom doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress. Inside lever always active.

  • High quality, longer lasting, lower maintenance design
  • Unique stainless steel “clutch” and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
  • Competitively priced for exceptional value
  • Exceeds BHMA Grade 1 Spec by 300%, over 3.6 million cycles
  • Marks lifetime mechanical warranty
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Classroom, Intruder

Keyway

Schlage C Keyway

Lever Design

American

Usage

Heavy Duty

ANSI Grade

Meets ANSI A156.2, Grade 1 Standards

Fire Rating

UL Listed up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Backset

2-3/4"

Latch

9/16" throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Warranty

Limited Lifetime Warranty
