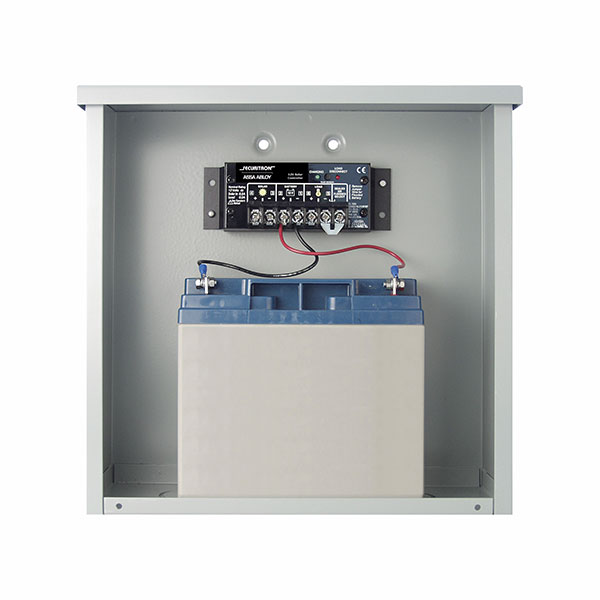

Securitron BPSS Boxed Solar Power Supply

Securitron BPSS Solar Power Supply

Clean power meets green power

The BPSS is the only out-of-the-box solution specifically designed for remote electric lock control where conventional power is impractical or not available.

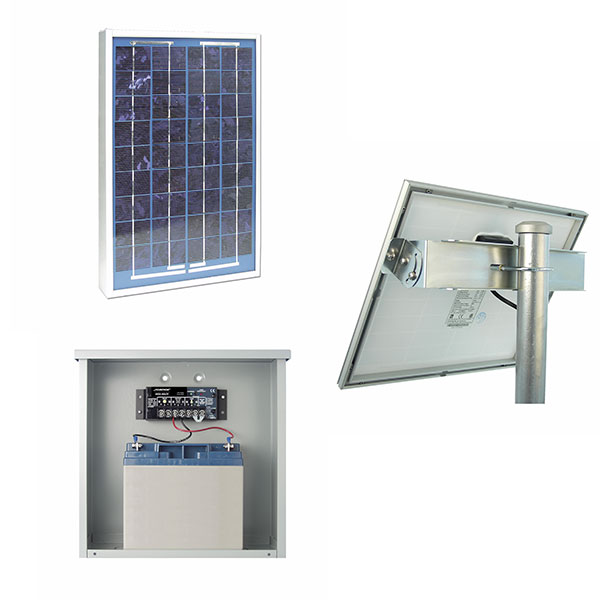

This complete solar power system powers most single-point access control device and fail secure lock (intermittent duty only) by producing sustainable solar and battery-operated power. Select the BPSS-10 or BPSS-20 (10 or 20 charging watts respectively), based on solar activity in the area/region where the device or product will be installed.

Features

• Works with most fail-secure electric locks
• Works with most keypads or card readers
• Operates outdoors
• 100% solid state solar controller comes with anodized aluminum case and marine-rated terminals
• Low voltage battery monitor protects batteries from deep discharge
• High-efficiency photovoltaic panels use silicon nitride multicrystalline cells
• Green charging LED indicator
• Comes with mounting brackets for enclosure and solar panel, Accommodates up to 2″ [51mm] diameter pole/post
• Approved for use in hazardous locations—Class 1, Division 2, Groups A, B, C, D
• SecuriCare 3-year, no-fault, no questions asked warranty

Optional Features

• Mounting brackets available for fence/pole mounting (to 3″ [76.2mm] diameter)
• Wind kit available for high wind areas
• Available in 10 W and 20 W versions

Electrical

• Output Voltage: 14.4 VDC max — Maximum 125 mA continuous, 1 A maximum operating the locking device — intermittent duty only. Number of daily lock operations will vary due to solar activity and current draw

Environmental

• Operating Temperature: -4˚ to 113˚ F [-20˚ to 45 ˚C]
• Panels: -40˚ to 185˚ F [-40˚ to 85˚ C
