Product Overview

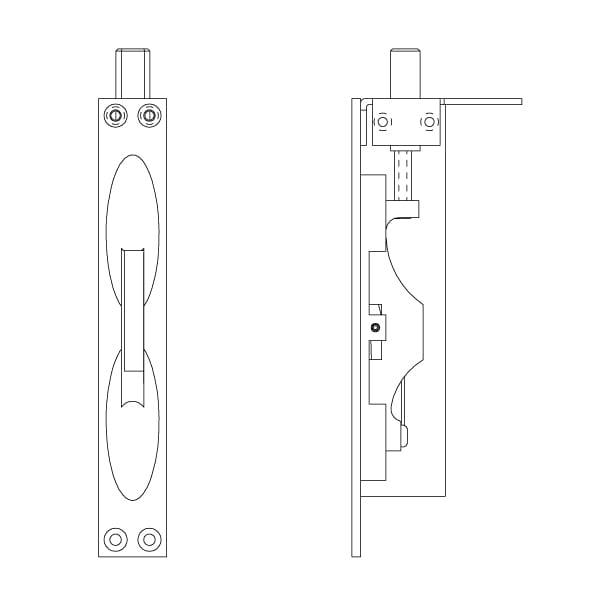

Ives FB358 Flush Bolt, For Wood Doors
Flush bolts are used to secure the inactive leaf, so the active door can lock into it. Flush bolts are installed in the top and bottom edges of the door. When flipped, the top bolt projects into the frame head. The bottom bolt projects into the floor or threshold.
- Reduces installation costs; requires only simple router mortise at top and bottom corners of doors
- Door strength and rigidity maintained by tying door faces to reinforcing extensions on guide with machine screws and bearing washers, not supplied
- Non-handed
- Bolt tip 1/2″ diameter
- Bolt throw is 3/4″ with a 7/8″ vertical adjustment
- Bolt backset is 3/4″
- Not available for rabbeted door installations
Certifications
- Meets ANSI A156.16, L04261
- UL Listed 90 Minute fire doors 8’0″ X 10’0″. Fire-rated openings require top and botom bolt.
Brand | |
---|---|
Finishes | 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 643e Aged Bronze, BLK Black |
ANSI/BHMA Standard | Meets ANSI A156.16, L04261 |
Fire Rating | UL Listed 3 Hour fire doors 8’0" X 10’0". Fire rated openings require top and bottom bolt. |
Guide Size | 1" Wide x 2-1/2" Long x 5/64" Thick |
Body Size | 1″ Wide x 6-3/4″ Long x 1-1/8″ Deep |
Strike Size | 15/16″ Wide x 2-1/4″ Long x 5/64″ Thick |
Handing | Non-Handed |
