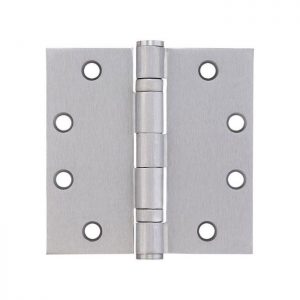

Ives 5BB1 – 4″ x 4″ Ball Bearing Hinge

Usually Ships: 3-5 Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .130 Standard Weight – Ball Bearing
  • Five Knuckle, Template Hole Pattern

Available Options:

  • Black
  • Dark Bronze
  • Satin Chrome
Clear

Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Hinges tested for cycles, weather, and environment to ensure high performance
  • Recommended for medium weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors
  • UL Listed (3 Hour Fire-Rated)
  • UL Classified for windstorm rated assemblies – R37965
Brand

Finishes

640 Oil Rubbed Bronze, 652 Satin Chrome, F-BLK Flat Black

Size

4" x 4"

Gauge

0.130

Material

1040 steel or 304 series stainless steel

Usage

Medium Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions

Fire Rating

Certified to meet UL standards (3 Hour Fire-Rated)
