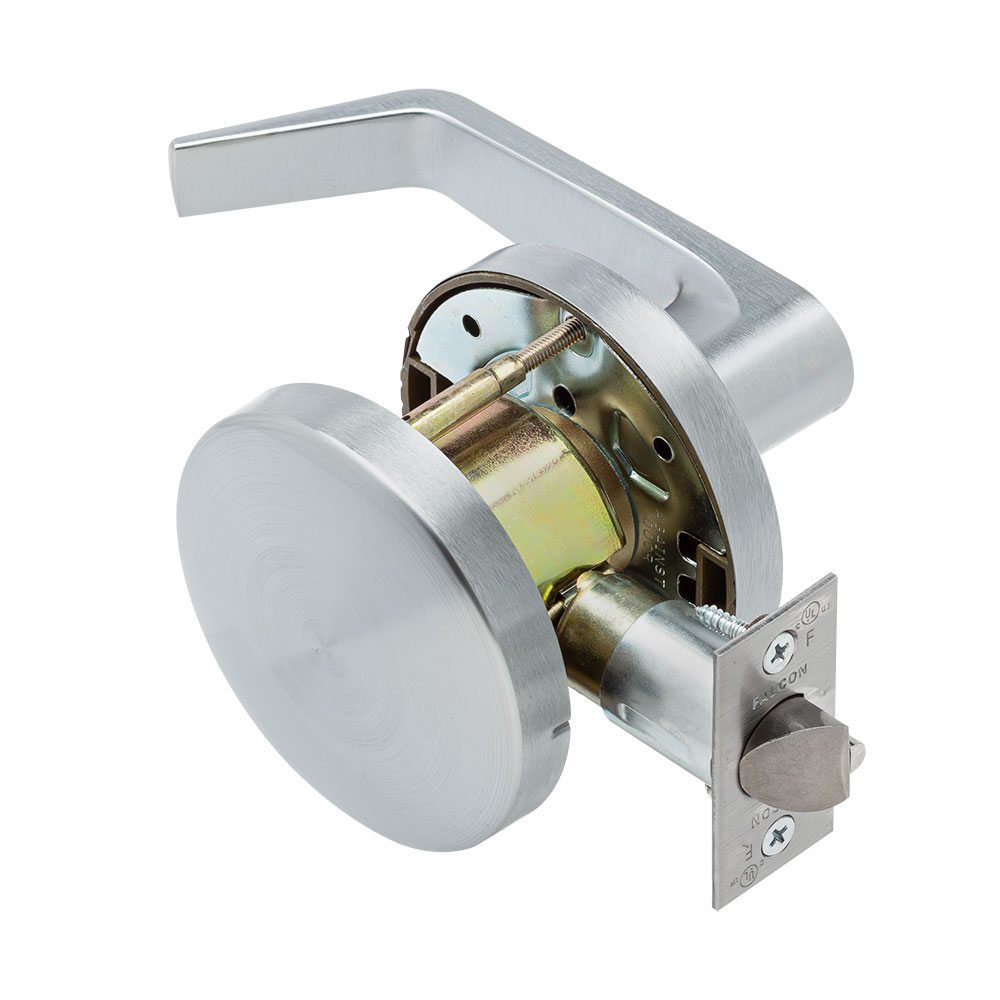

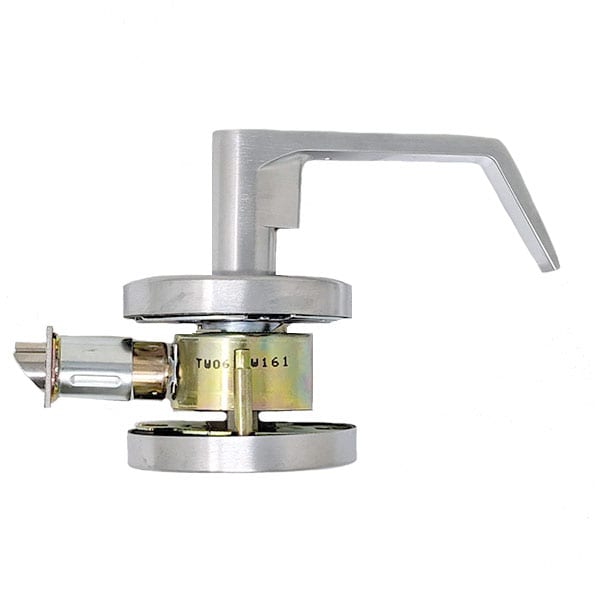

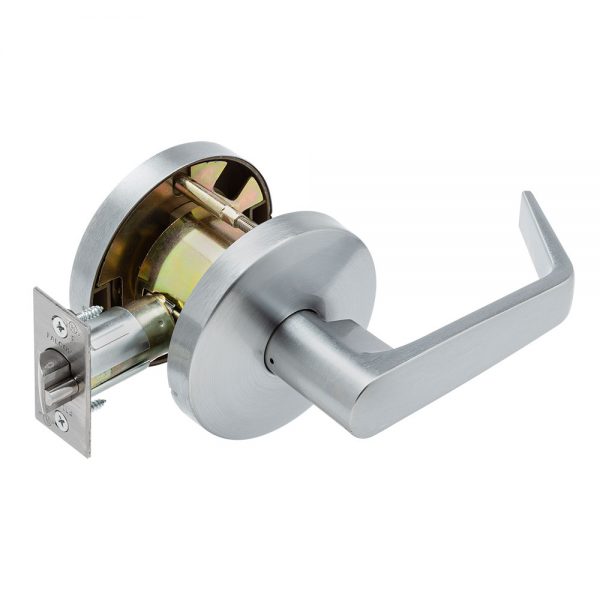

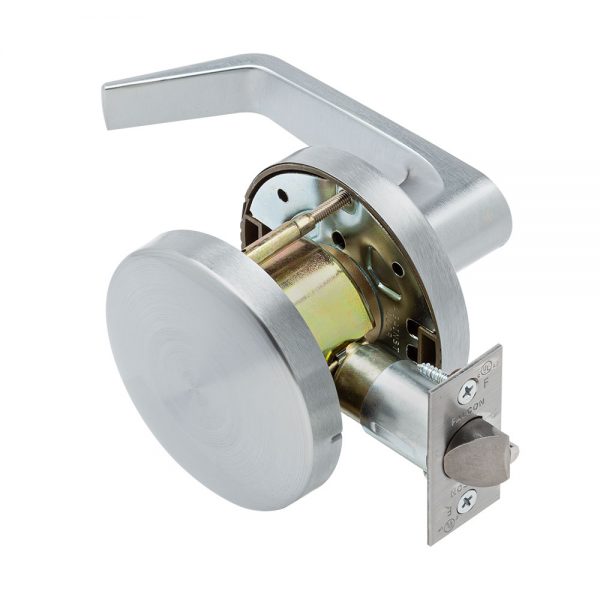

Falcon W161D D (DANE) Exit/Communicating Lever Set

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.2, Grade 2 certified
Blank plate outside, inside lever always free
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Clear

Quantity:

Falcon W161D Grade 2 Exit/Communicating Cylindrical Lock, Dane Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

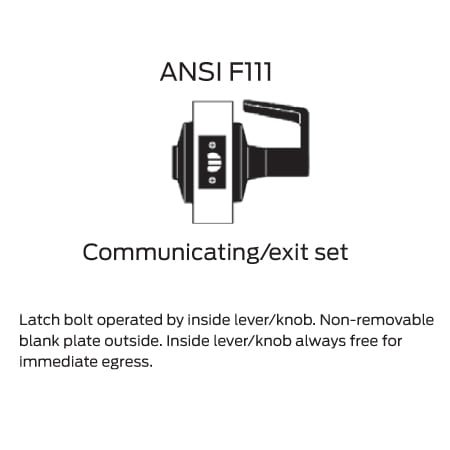

ANSI Function F111 – Latch bolt operated by inside lever. Non-removable blank plate outside. Inside lever always free for immediate egress.

Non-handed for easy field assembly
Heavy duty springs for better lever return and to prevent sagging
Manufactured to Allegion’s industry-leading quality standards

Brand	Falcon
Finishes	605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Lock Function	Exit / Communicating
Lever Design	D (Dane)
Usage	Medium Duty
ANSI/BHMA Standard	Tested and certified under ANSI/BHMA A156.2, Grade 2
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL/cUL listed up to 3 Hours – UL symbol on the latch front
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Latch	1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Handing	Non-Handed
Door Thickness	1-3/8" to 1-3/4"
Warranty	10 Year Limited
